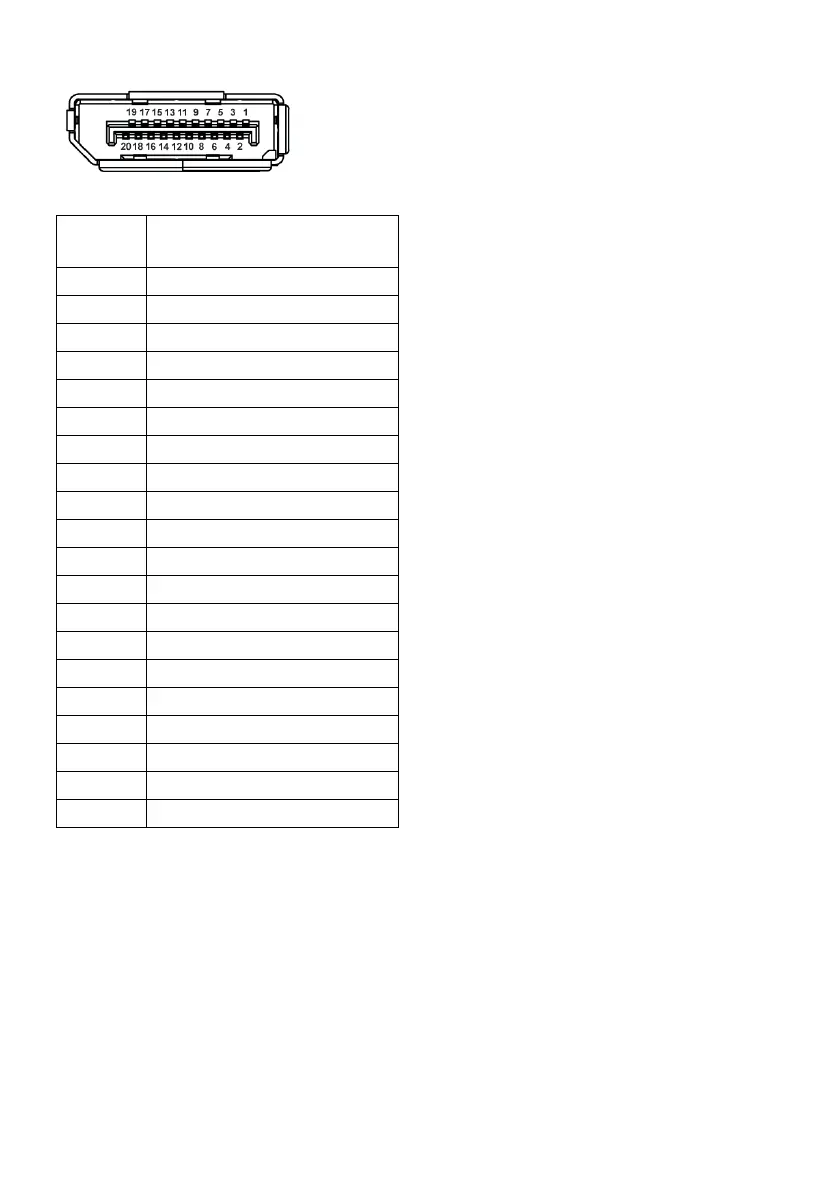

Dell E2417H - DisplayPort Connector

Pin
Number
20-pin Side of the
Connected Signal Cable
ML0(p)
GND
ML0(n)
ML1(p)
GND
ML1(n)
ML2(p)
GND
ML2(n)
ML3(p)
GND
ML3(n)
GND
GND
AUX(p)
GND
AUX(n)
GND
Re-PWR
+3.3 V DP_PWR
About Your Monitor | 17
DisplayPort Connector
Plug and Play Capability
You can install the monitor in any Plug and Play-compatible system. The monitor
automatically provides the computer system with its Extended Display Identification Data
(EDID) using Display Data Channel (DDC) protocols so that the system can configure
itself and optimize the monitor settings. Most monitor installations are automatic; you
can select different settings if desired. For more information about changing the monitor
settings, see
Operating the Monitor .
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
