Table 12. Cabling Teradici Host cards
Teradici 2220 Host Card NVIDIA Quadro K4200
PCI Slot 1
<->
PCI Slot 4
PCI Slot 2
<->
PCI Slot 5
PCI Slot 3
<->
PCI Slot 6
For cable installation, complete the following steps:

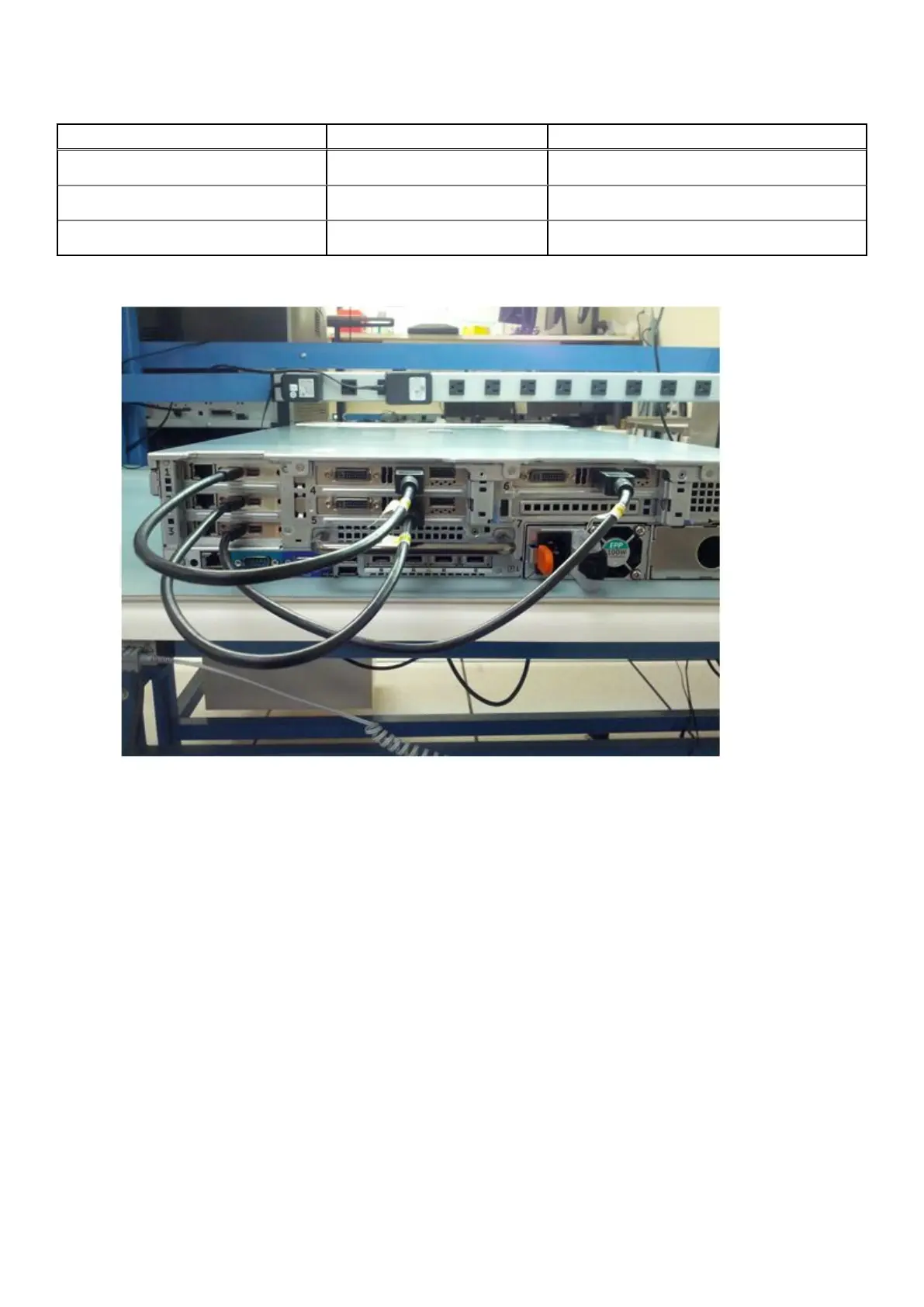

1. Connect the mDP-to-DP cables from port 2 on the GPUs to port 1 on the Teradici host cards as shown
below.
