When the processor module is properly seated, all four corners are aligned at the same height. If one or more corners of the module are higher than the
others, the module is not seated properly.

2. Tighten the ZIF socket by turning the cam screw clockwise to secure the processor module to the system board.

3. Replace the processor heat sink (see Replacing the Processor Heat Sink).

4. Replace the fan (see Replacing the Fan).

5. Replace the bottom of the base assembly (see Replacing the E5400 Bottom of the Base Assembly or Replacing the E5500 Bottom of the Base Assembly).

6. Follow the procedures in After Working on Your Computer.
Back to Contents Page


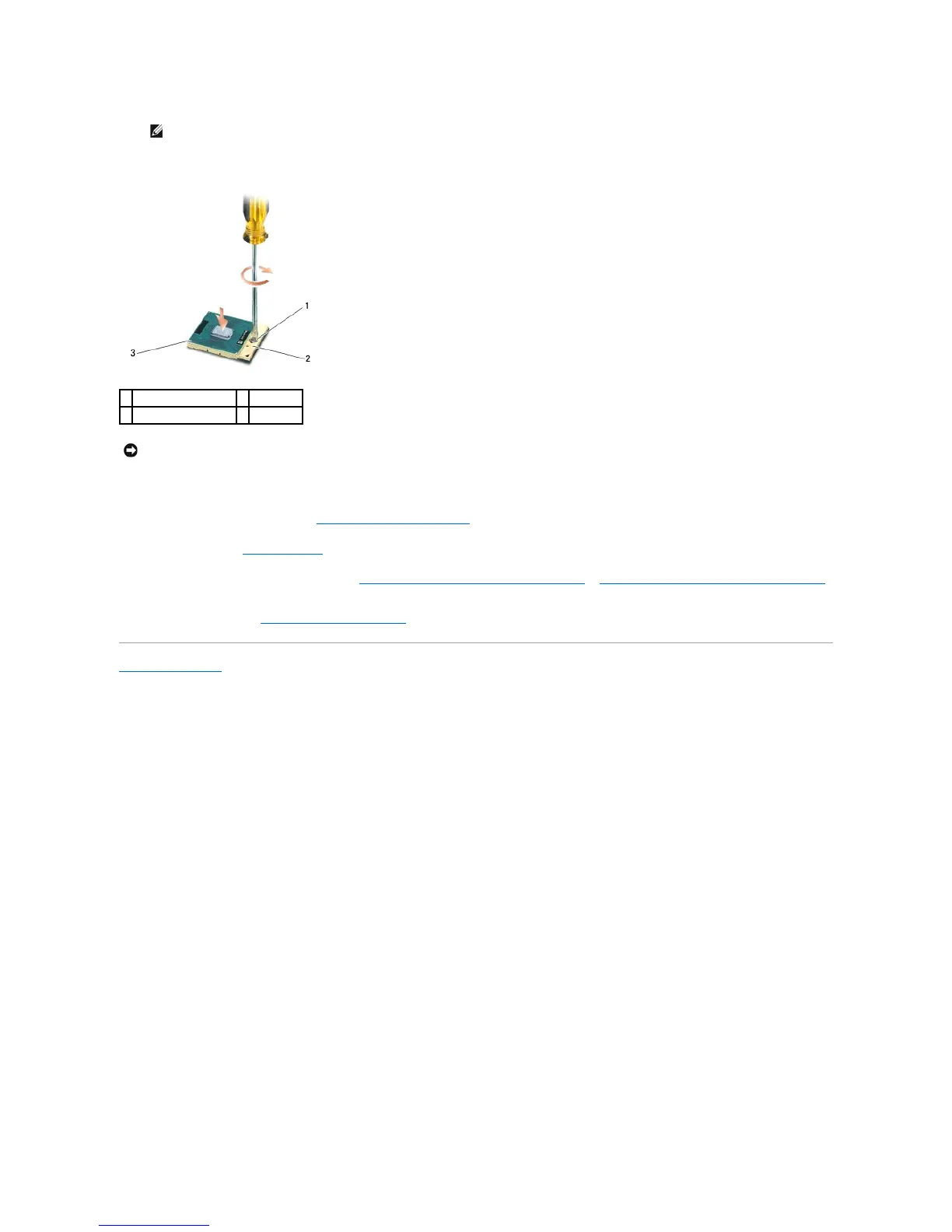

NOTE: The pin-1 corner of the processor module has a triangle that aligns with the triangle on the pin-1 corner of the ZIF socket.
1
ZIF-socket cam screw
2
ZIF socket
3
pin-1 corner


NOTICE: To avoid damage to the processor, hold the screwdriver so that it is perpendicular to the processor when turning the cam screw.

Dell E5500 - Latitude - Core 2 Duo 2.53 GHz Specifications

General

Processor	Intel Core 2 Duo 2.53 GHz
RAM	Up to 8 GB DDR2
Graphics	Intel GMA 4500MHD
Operating System	Windows Vista Business
Battery Life	Up to 4 hours
Product Line	Latitude
Model	E5500
Ports	USB 2.0, VGA, Ethernet
Wireless	Wi-Fi 802.11a/b/g/n, Bluetooth
Weight	6 lbs
