Dell E82S - Removing a 2 X 2.5-Inch Rear Drive Module Cooling Fan

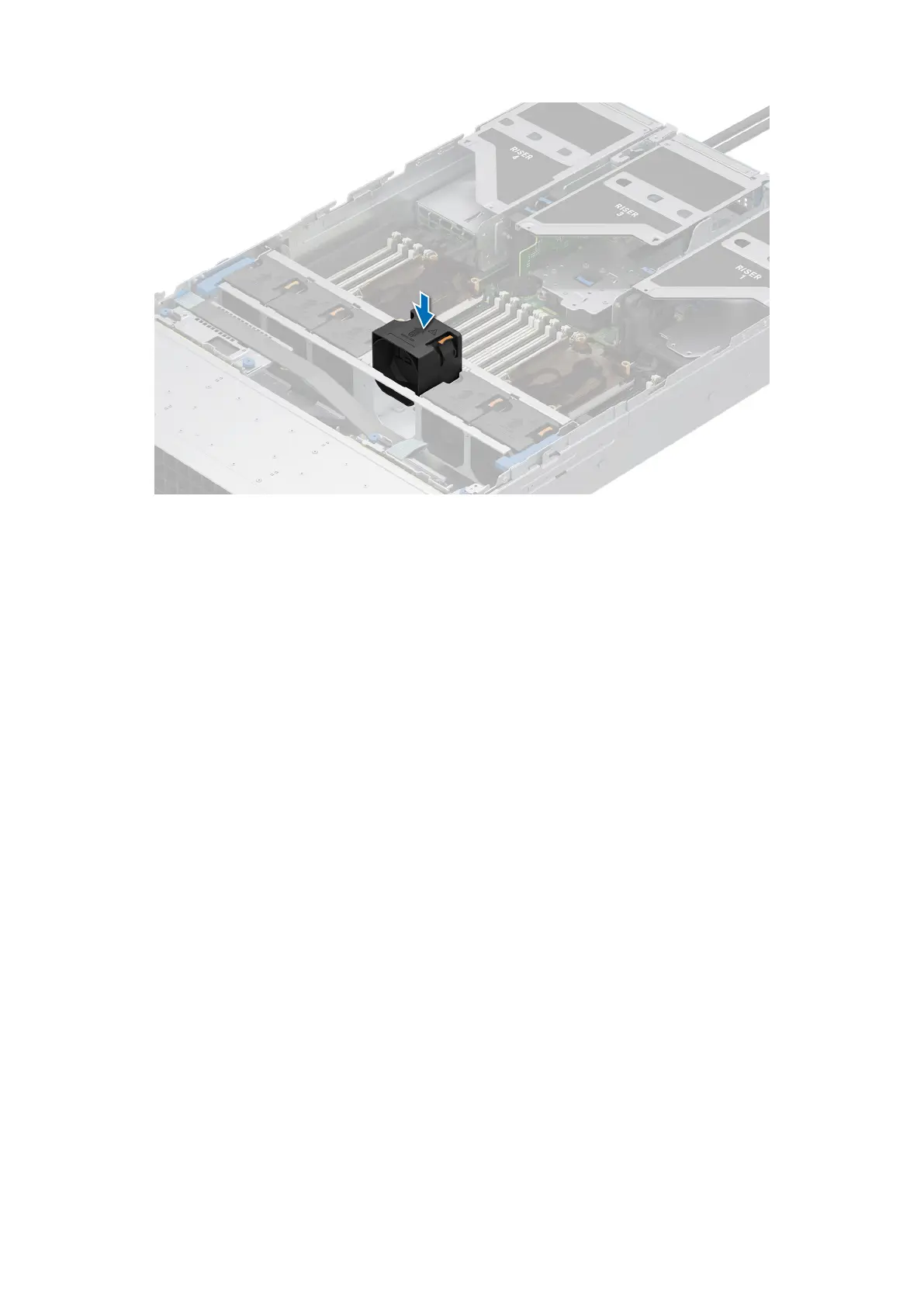

Figure 51. Installing a cooling fan
Next steps
1. Follow the procedure listed in After working inside your system.
Removing a 2 x 2.5-inch rear drive module cooling fan
Prerequisites
1. Follow the safety guidelines listed in the Safety instructions.
2. Follow the procedure listed in Before working inside your system.
3. Remove the 2 x 2.5-inch rear drive module air shroud.
Steps
Press the orange release tab and lift the rear drive module cooling fan to disconnect from the connector on the rear drive
module.
