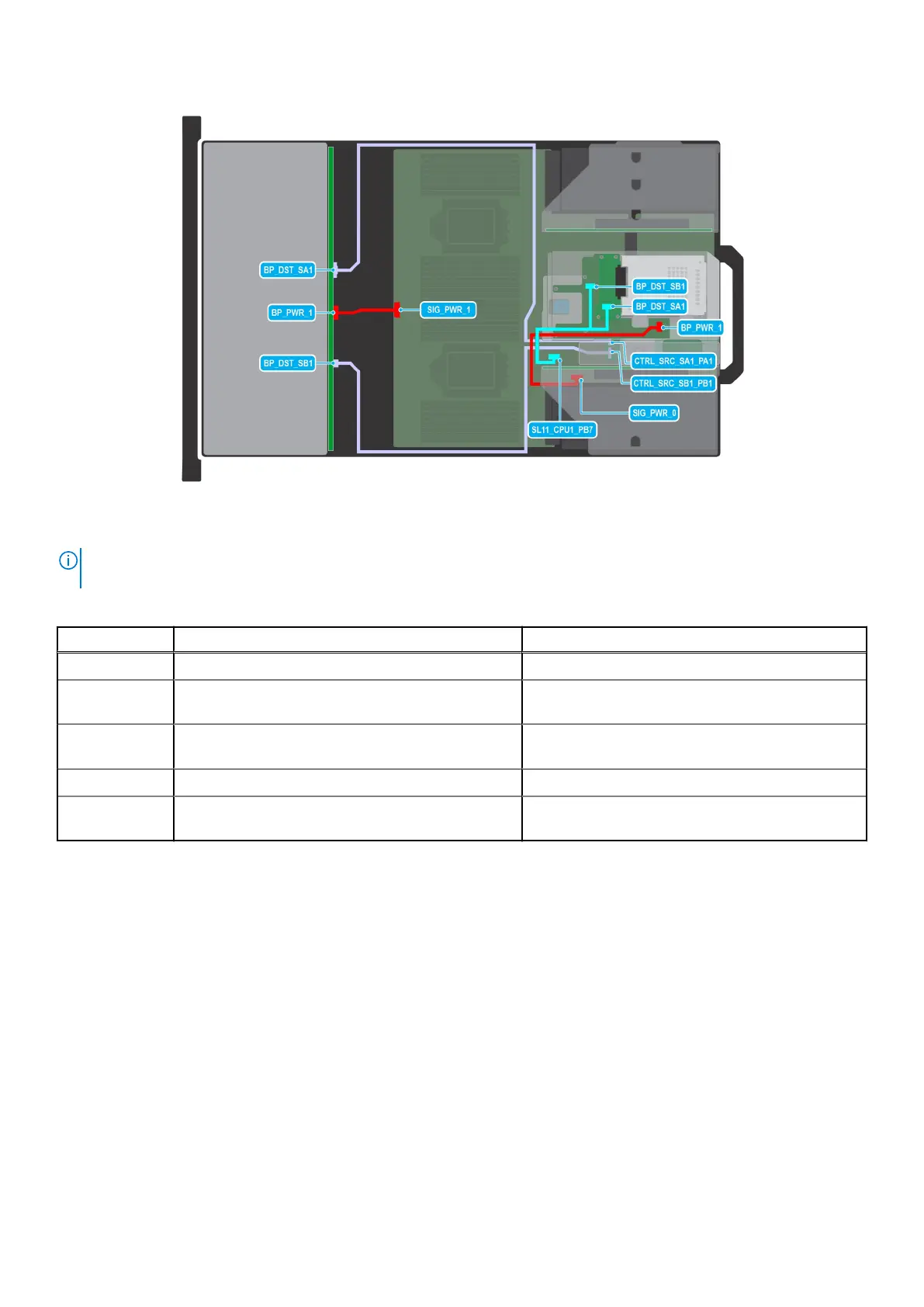

Figure 81. Configuration 5: 12 x 3.5-inch SAS/SATA + 2 x 2.5-inch NVMe with APERC in Riser 2
NOTE:
Follow the sequential order as shown in the table to remove the cables, to install the cables follow the reverse
sequential order.
Table 84. 12 x 3.5-inch SAS/SATA + 2 x 2.5-inch NVMe with APERC in Riser 2
Order From To
1 SIG_PWR_1 (system board power connector) BP_PWR_1 (backplane power connector)
2 CTRL_SRC_SB1_PB1 (adapter PERC controller
connector)
BP_DST_SB1 (backplane signal connector)
3 CTRL_SRC_SA1_PA1 (adapter PERC controller
connector)
BP_DST_SA1 (backplane signal connector)
4 SIG_PWR_0 (system board power connector) BP_PWR_1 (rear backplane power connector)
5 SL11_CPU1_PB7 (signal connector on system board) BP_DST_SA1 (rear backplane signal connector) and
BP_DST_SB1 (rear backplane signal connector)
128 Installing and removing system components
