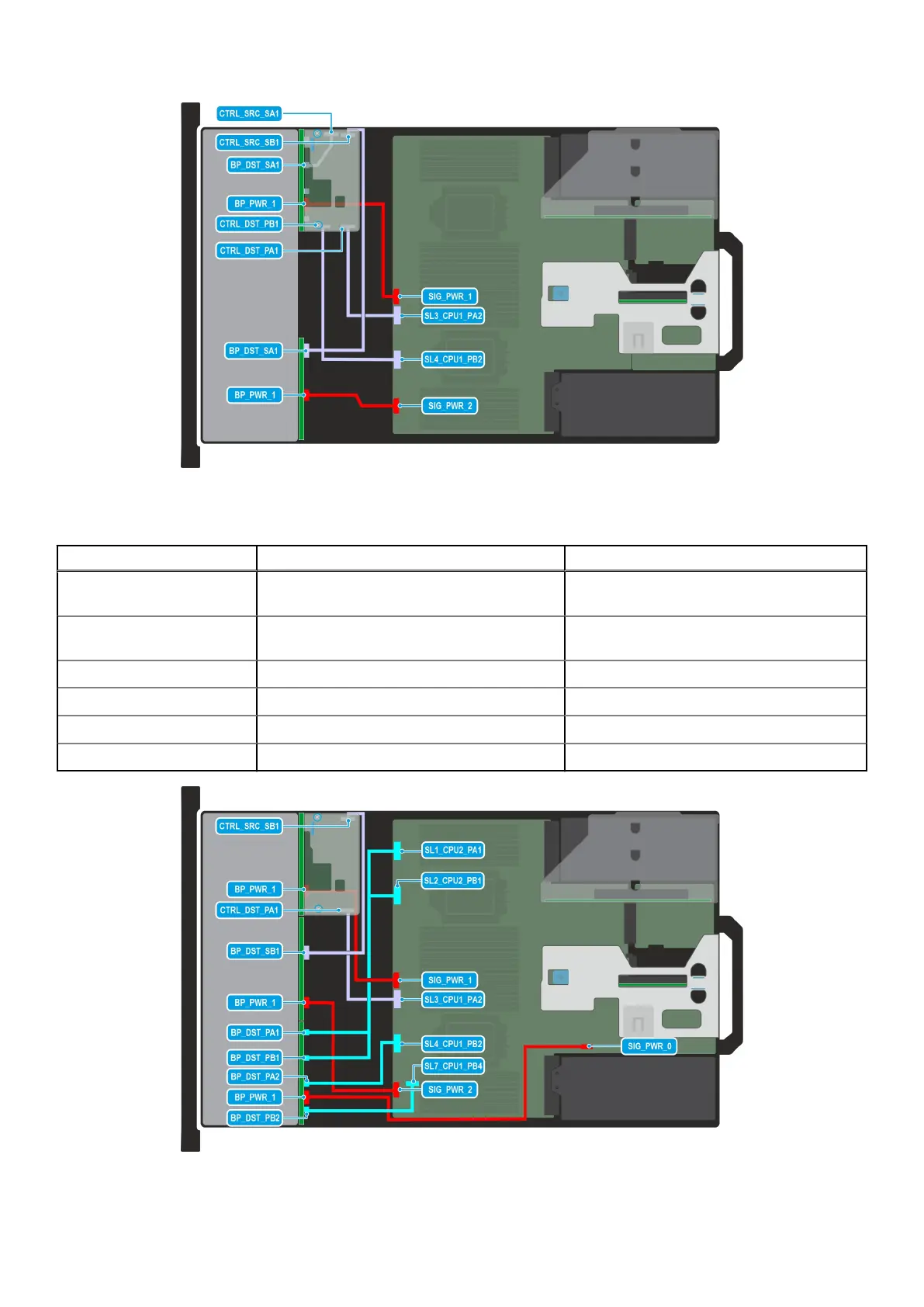

Figure 92. Configuration 16: 16 x 2.5-inch SAS/SATA with fPERC (H965i)
Table 95. 16 x 2.5-inch SAS/SATA with fPERC (H965i)
Order From To
1 SL3_CPU1_PA2 (signal connector on system
board)
CTRL_DST_PA1 (fPERC input connector)
2 SL4_CPU1_PB2 (signal connector on system
board)
CTRL_DST_PB1 (fPERC input connector)
3 SIG_PWR_1 (system board power connector) BP_PWR_1 (backplane power connector)
4 CTRL_SRC_SA1 (fPERC controller connector) BP_DST_SA1 (backplane signal connector)
5 CTRL_SRC_SB1 (fPERC controller connector) BP_DST_SA1 (backplane signal connector)
6 SIG_PWR_2 (system board power connector) BP_PWR_1 (backplane power connector)
Figure 93. Configuration 17: 16 x 2.5-inch SAS/SATA + 8 x 2.5-inch NVMe with fPERC (HBA355i, H355, H755)
