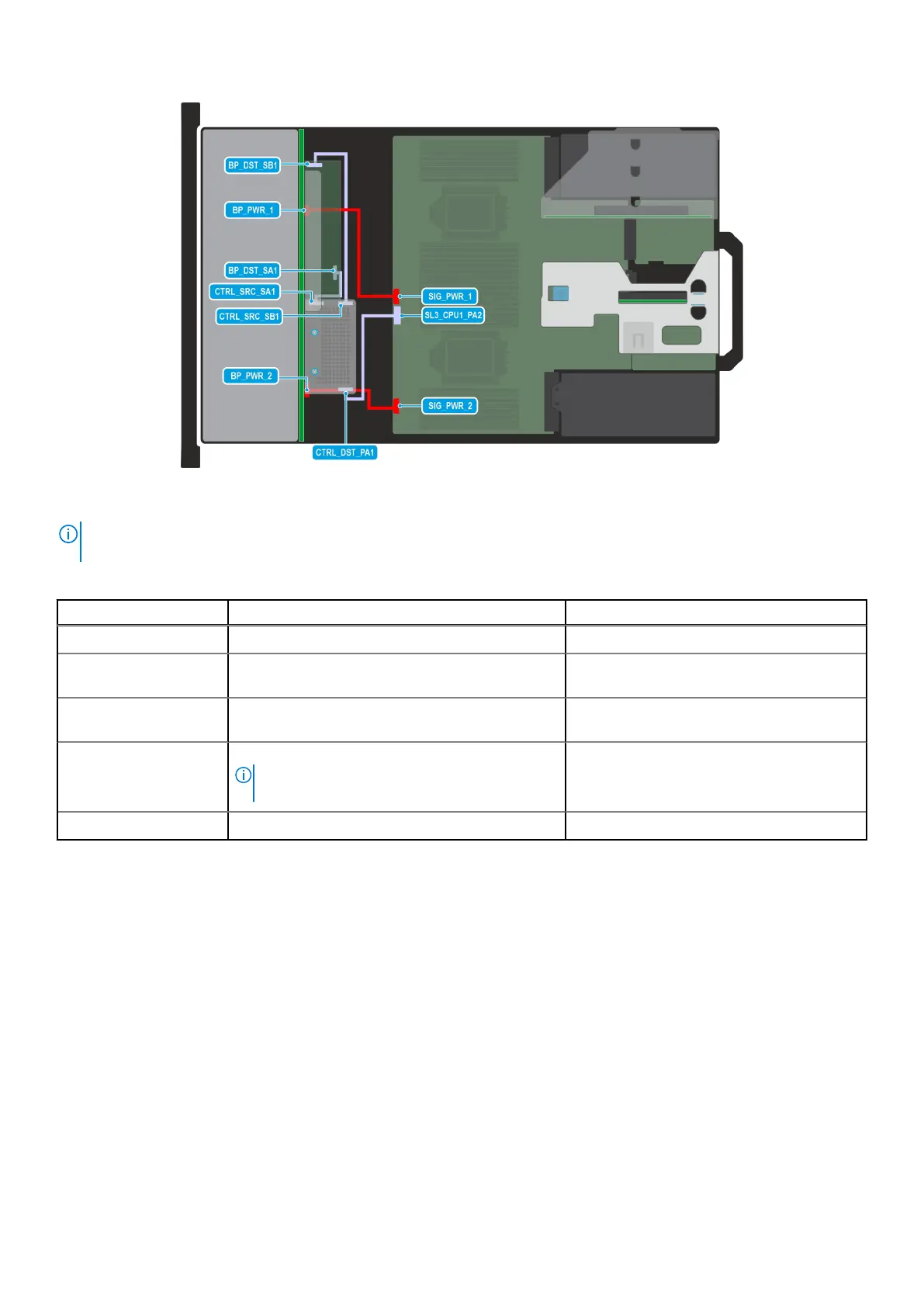

Figure 109. Configuration 33: 24 x 2.5-inch SAS/SATA with fPERC (HBA355i, H355, H755)
NOTE: Follow the sequential order as shown in the table to remove the cables, to install the cables follow the reverse
sequential order.
Table 112. 24 x 2.5-inch SAS/SATA with fPERC (HBA355i, H355, H755)
Order From To
1 SIG_PWR_1 (system board power connector) BP_PWR_1 (backplane power connector)
2 SL3_CPU1_PA2 (signal connector on system
board)
CTRL_DST_PA1 (fPERC input connector)
3 CTRL_SRC_SB1 (fPERC controller connector) BP_DST_SB1 (backplane expander signal
connector)
4 CTRL_SRC_SA1 (fPERC controller connector)
NOTE: Tightening the connector screws
secures the connector end.
BP_DST_SA1 (backplane expander signal
connector)
5 SIG_PWR_2 (system board power connector) BP_PWR_2 (backplane power connector)
Installing and removing system components 155
