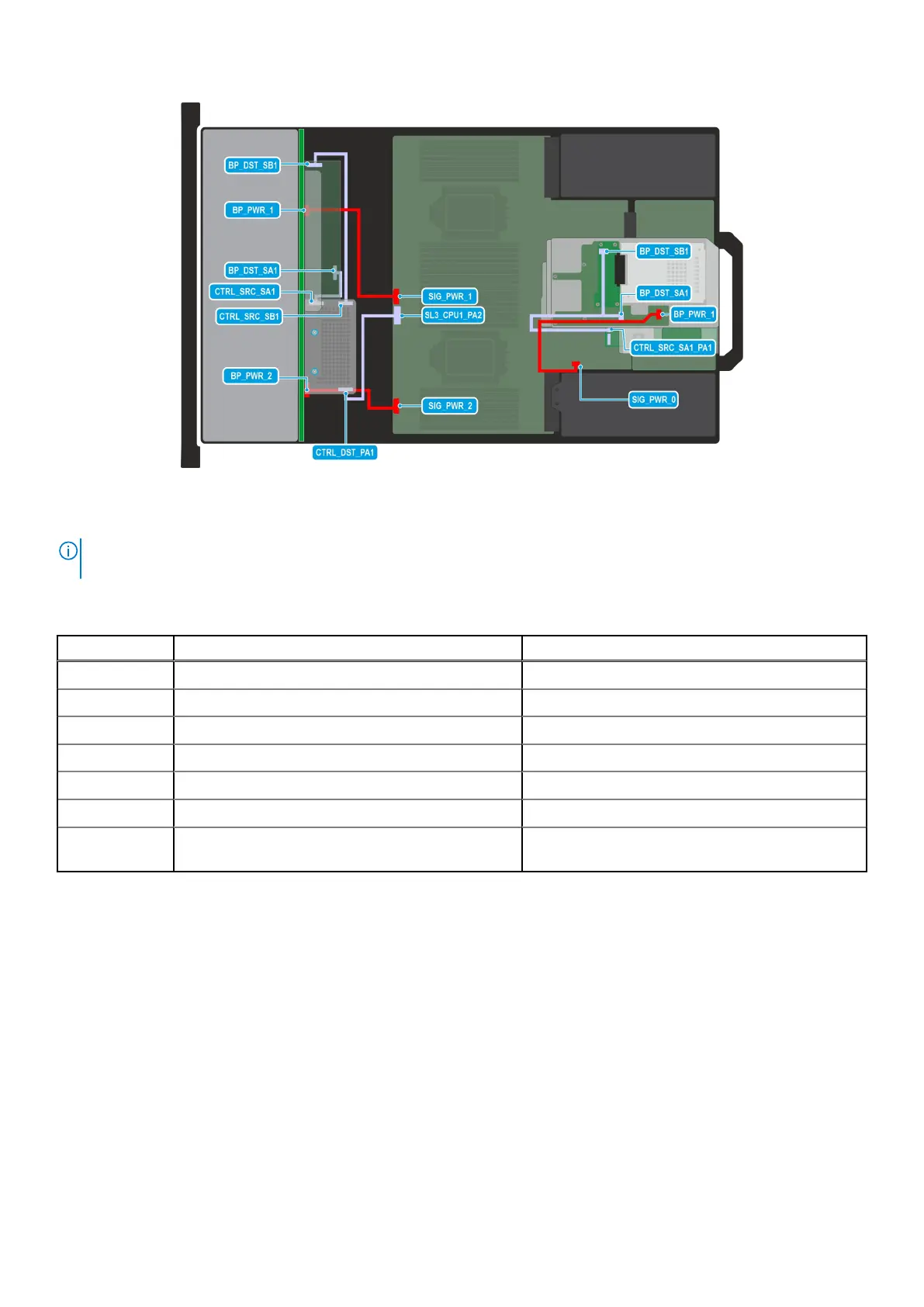

Figure 117. Configuration 41: 24 x 2.5-inch SAS/SATA + 2 x 2.5-inch SAS/SATA dual controller with fPERC
(HBA355i, H355, H755) and APERC in Riser 2
NOTE: Follow the sequential order as shown in the table to remove the cables, to install the cables follow the reverse
sequential order.
Table 120. 24 x 2.5-inch SAS/SATA + 2 x 2.5-inch SAS/SATA dual controller with fPERC (HBA355i, H355,
H755) and APERC in Riser 2
Order From To
1 SIG_PWR_1 (system board power connector) BP_PWR_1 (backplane power connector)
2 SL3_CPU1_PA2 (signal connector on system board) CTRL_DST_PA1 (fPERC input connector)
3 CTRL_SRC_SB1 (fPERC controller connector) BP_DST_SB1 (backplane expander signal connector)
4 CTRL_SRC_SA1 (fPERC controller connector) BP_DST_SA1 (backplane expander signal connector)
5 SIG_PWR_2 (system board power connector) BP_PWR_2 (backplane power connector)
6 SIG_PWR_0 (system board power connector) BP_PWR_1 (rear backplane power connector)
7 CTRL_SRC_SA1_PA1 (adapter PERC controller
connector)
BP_DST_SA1 (rear backplane signal connector) and
BP_DST_SB1 (rear backplane signal connector)
Installing and removing system components 163
