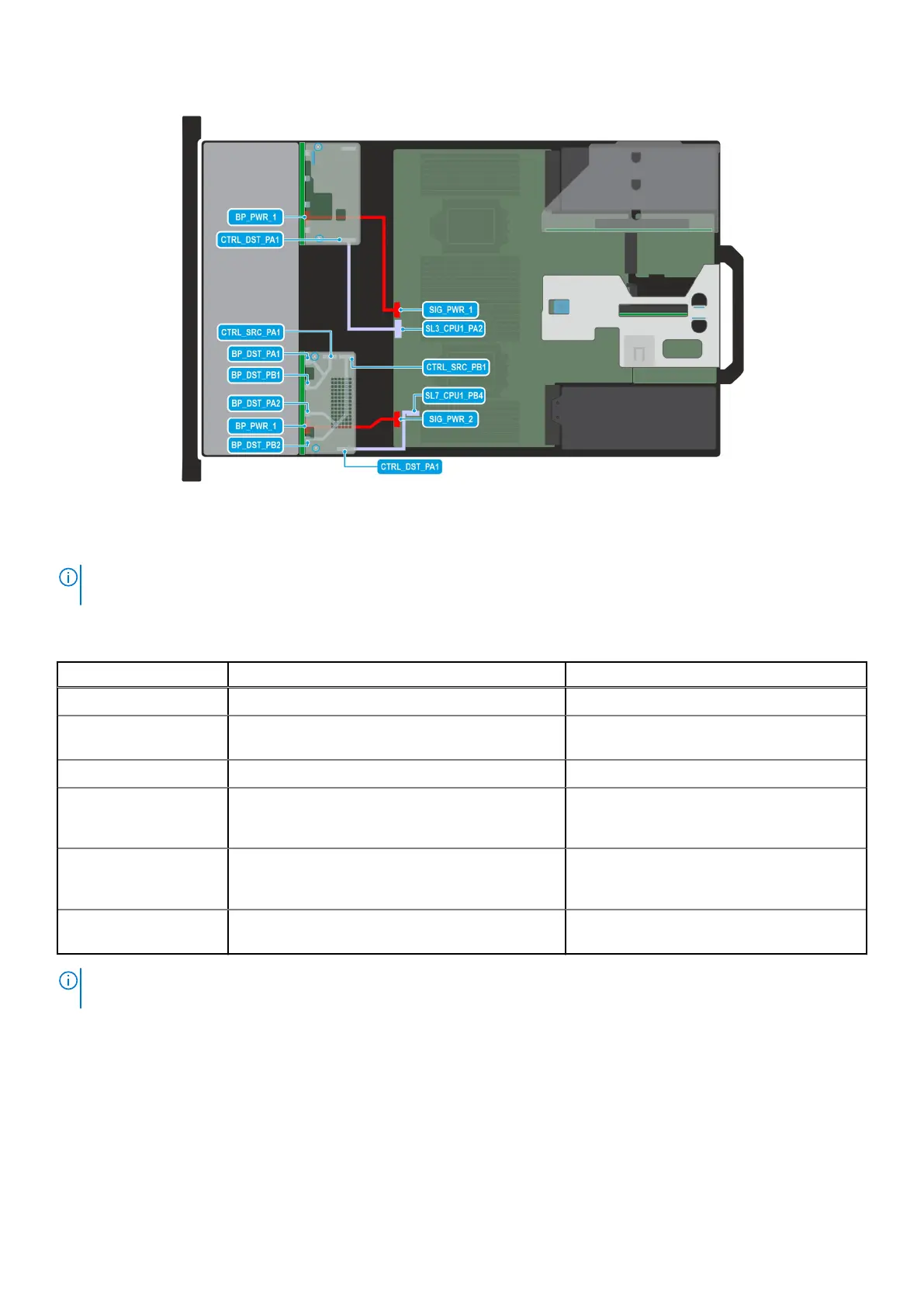

Figure 120. Configuration 44: 16 x 2.5-inch (8 x SAS/SATA with fPERC (HBA355i, H355, H755) + 8 x NVMe RAID
with fPERC (H755N))
NOTE:
Follow the sequential order as shown in the table to remove the cables, to install the cables follow the reverse
sequential order.
Table 123. 16 x 2.5-inch (8 x SAS/SATA with fPERC (HBA355i, H355, H755) + 8 x NVMe RAID with fPERC
(H755N))
Order From To
1 SIG_PWR_1 (system board power connector) BP_PWR_1 (backplane power connector)
2 SL3_CPU1_PA2 (signal connector on system
board)
CTRL_DST_PA1 (fPERC input connector)
3 SIG_PWR_2 (system board power connector) BP_PWR_2 (backplane power connector)
4 CTRL_SRC_PB1 (fPERC controller connector) BP_DST_PA2 (backplane signal connector)
and BP_DST_PB2 (backplane signal
connector)
5 CTRL_SRC_PA1 (fPERC controller connector) BP_DST_PA1 (backplane signal connector)
and BP_DST_PB1 (backplane signal
connector)
6 SL7_CPU1_PB4 (signal connector on system
board)
CTRL_DST_PA1 (fPERC input connector)
NOTE: An 8 x 2.5-inch NVMe backplane with fPERC H755N should be assembled outside and inserted into the system,
along with all necessary cables.
166 Installing and removing system components
