5. Wire the SMA cables to the M.2 module, as shown in the following figures. Use cable clips to secure the cables.

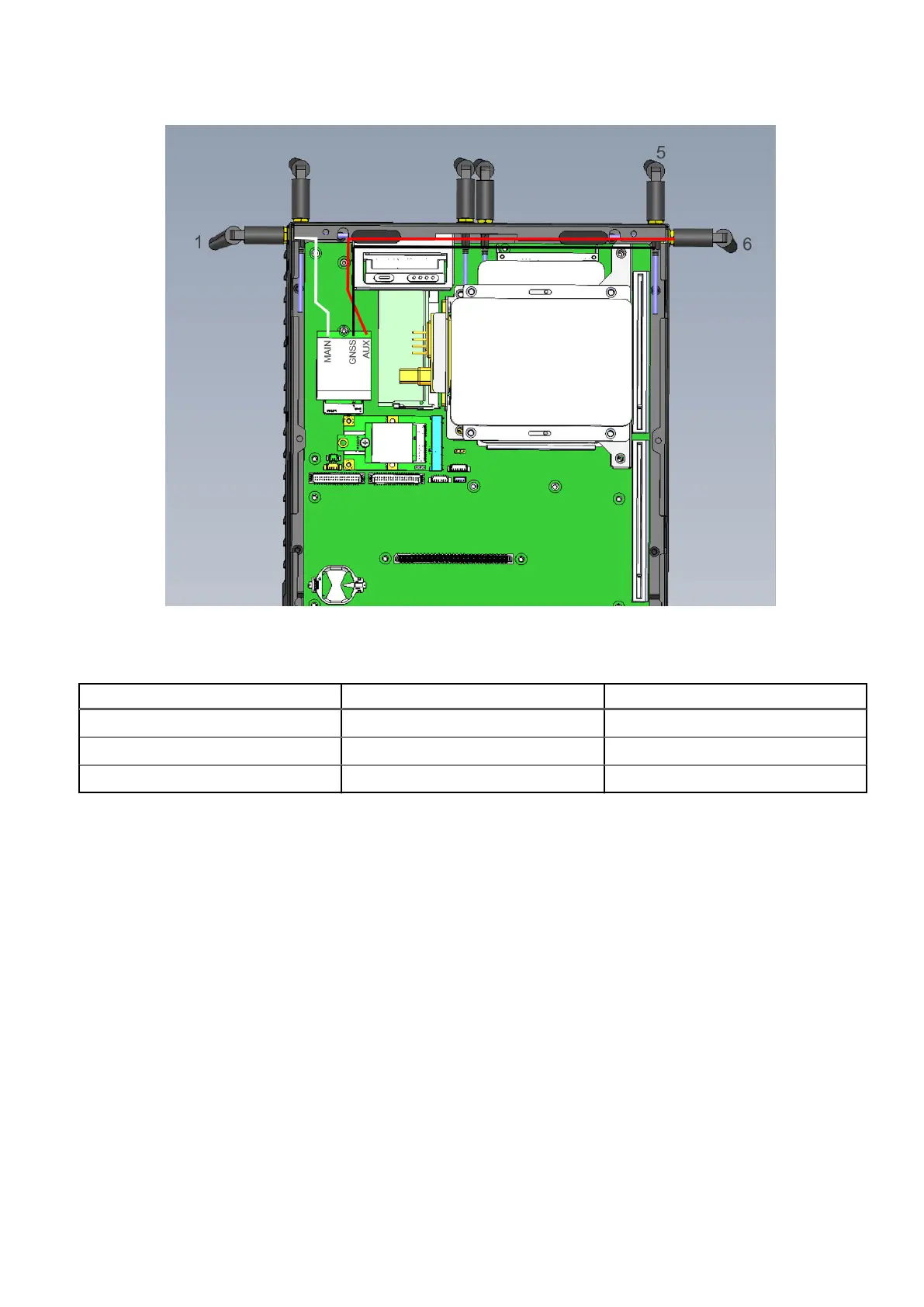

Figure 15. 4G cable routing

Table 3. 4G cable routing

Antenna Function Cable length (cm)

ANT1 4G Main 10

ANT5 4G GNSS 30

ANT6 4G Auxiliary 30

12 Installation procedure for 4G and 5G expansion modules
