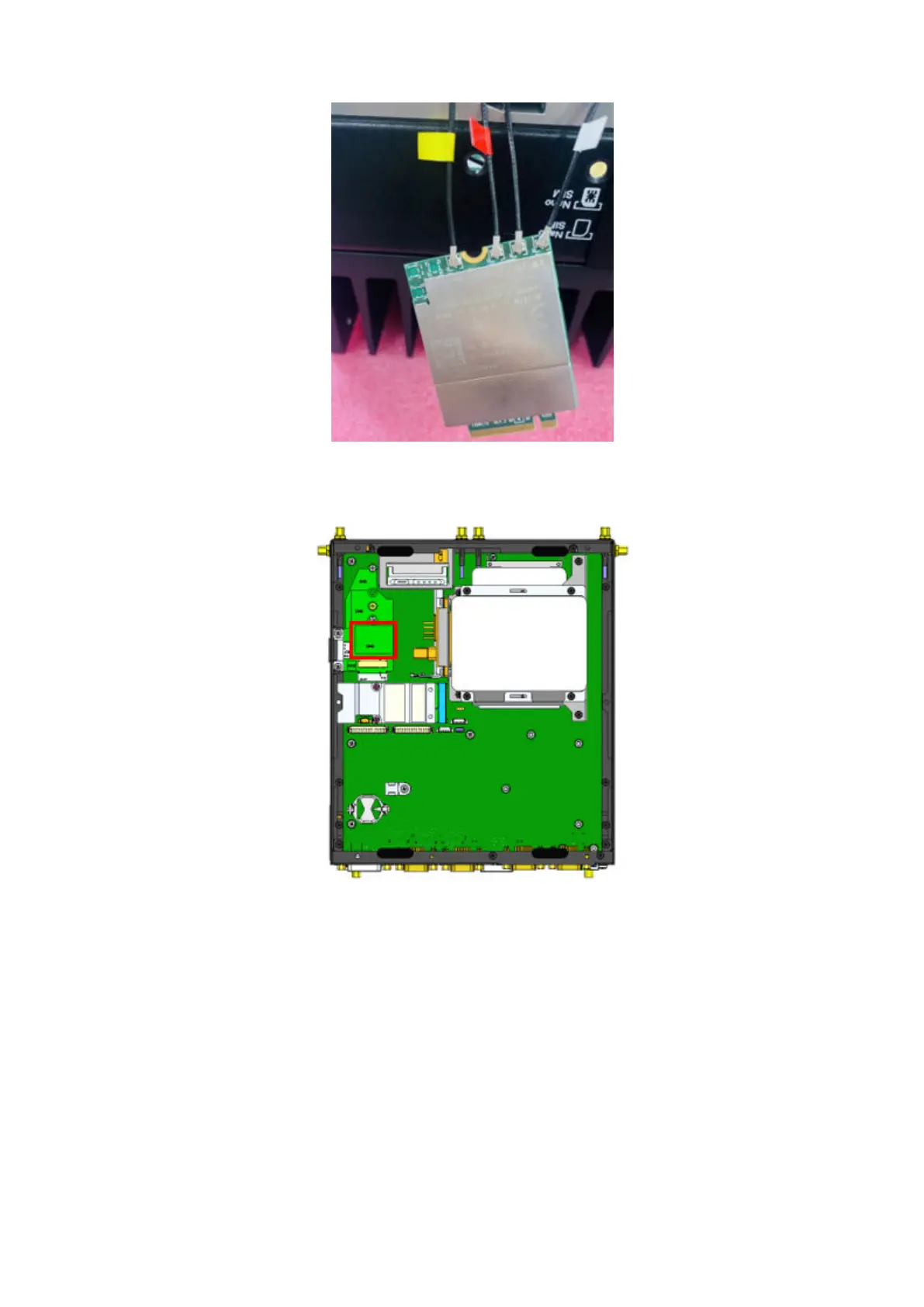

Figure 17. 5G M.2 module wiring
6. Install the 4G or 5G module in the location indicated with a red rectangle in the following figure.
Figure 18. M.2 module location
7. Apply the thermal pad, as shown in the following figure.
14
Installation procedure for 4G and 5G expansion modules
