Figure 20. Protection bracket

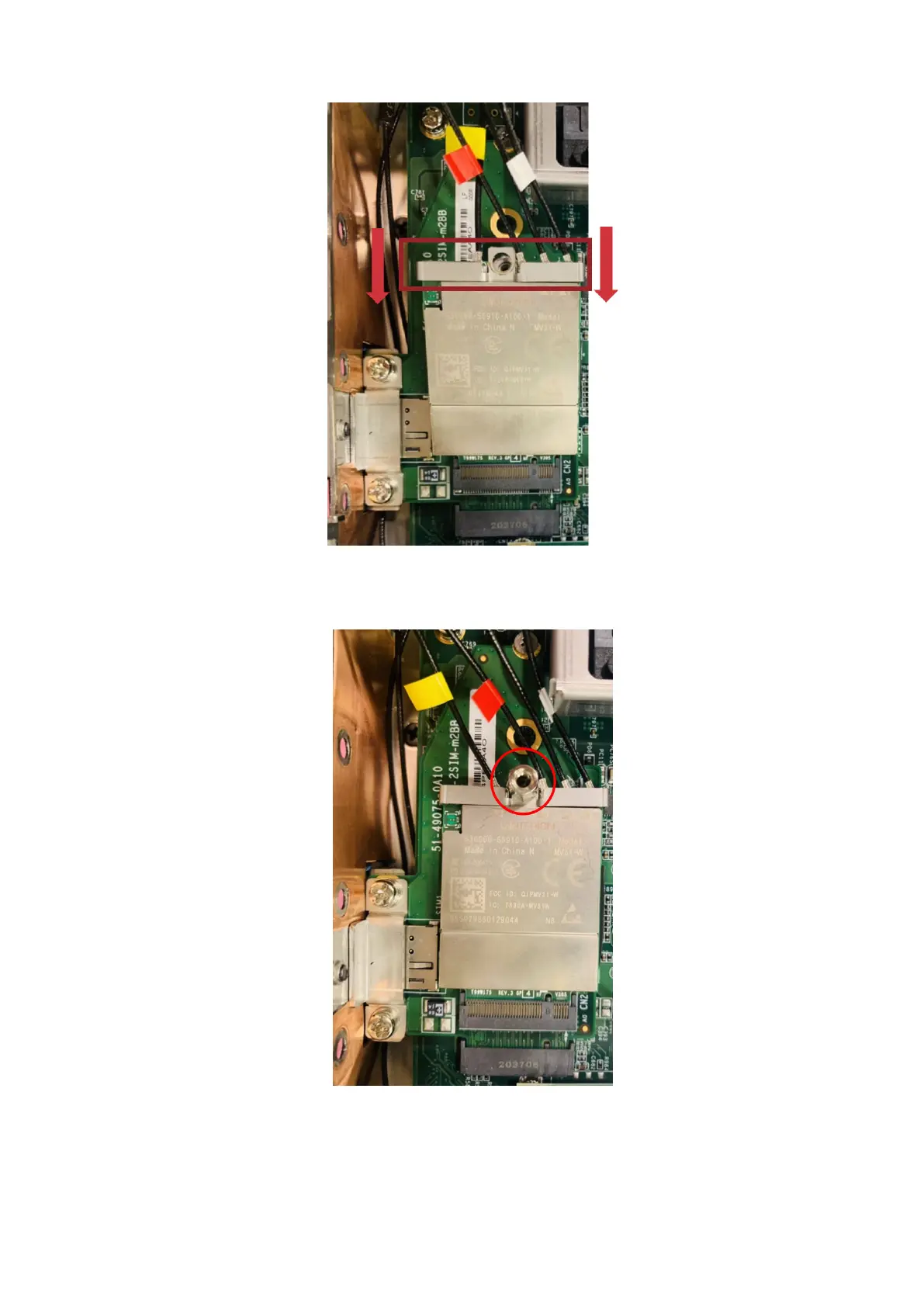

9. Install the standoff, as shown in the following figure.
Figure 21. Standoff installed
10. Assemble the standoffs on the heat sink. Screw the standoffs tightly into position, as shown in the following figures.
16
Installation procedure for 4G and 5G expansion modules
