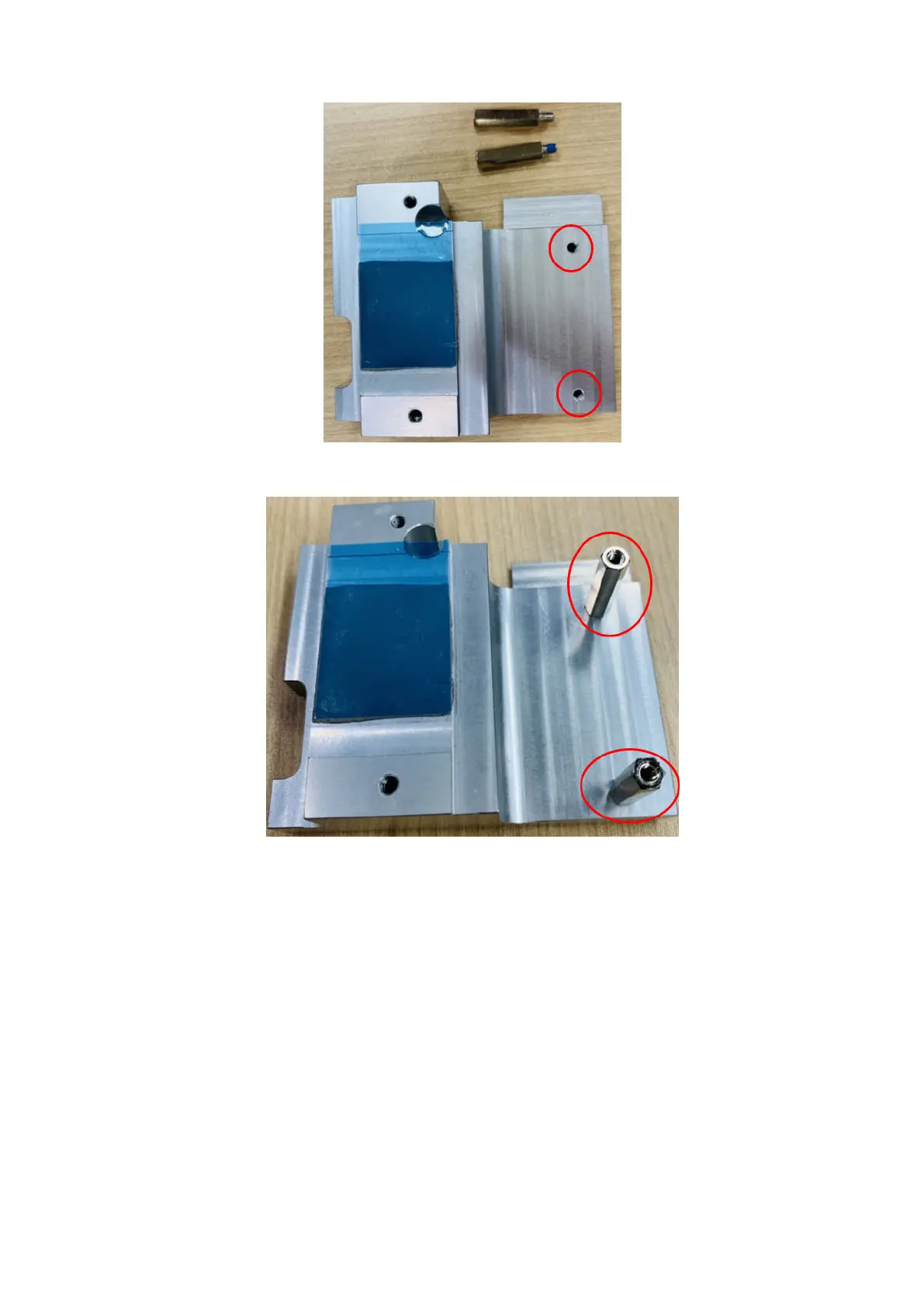

Figure 22. Standoff screw hole locations
Figure 23. Standoff screws assembled
11. To apply the heat sink onto the M.2 module, screw the heat sink into position, as shown in the following figure, then use the
screws and nuts to reattach to the side panel.
Installation procedure for 4G and 5G expansion modules
17
