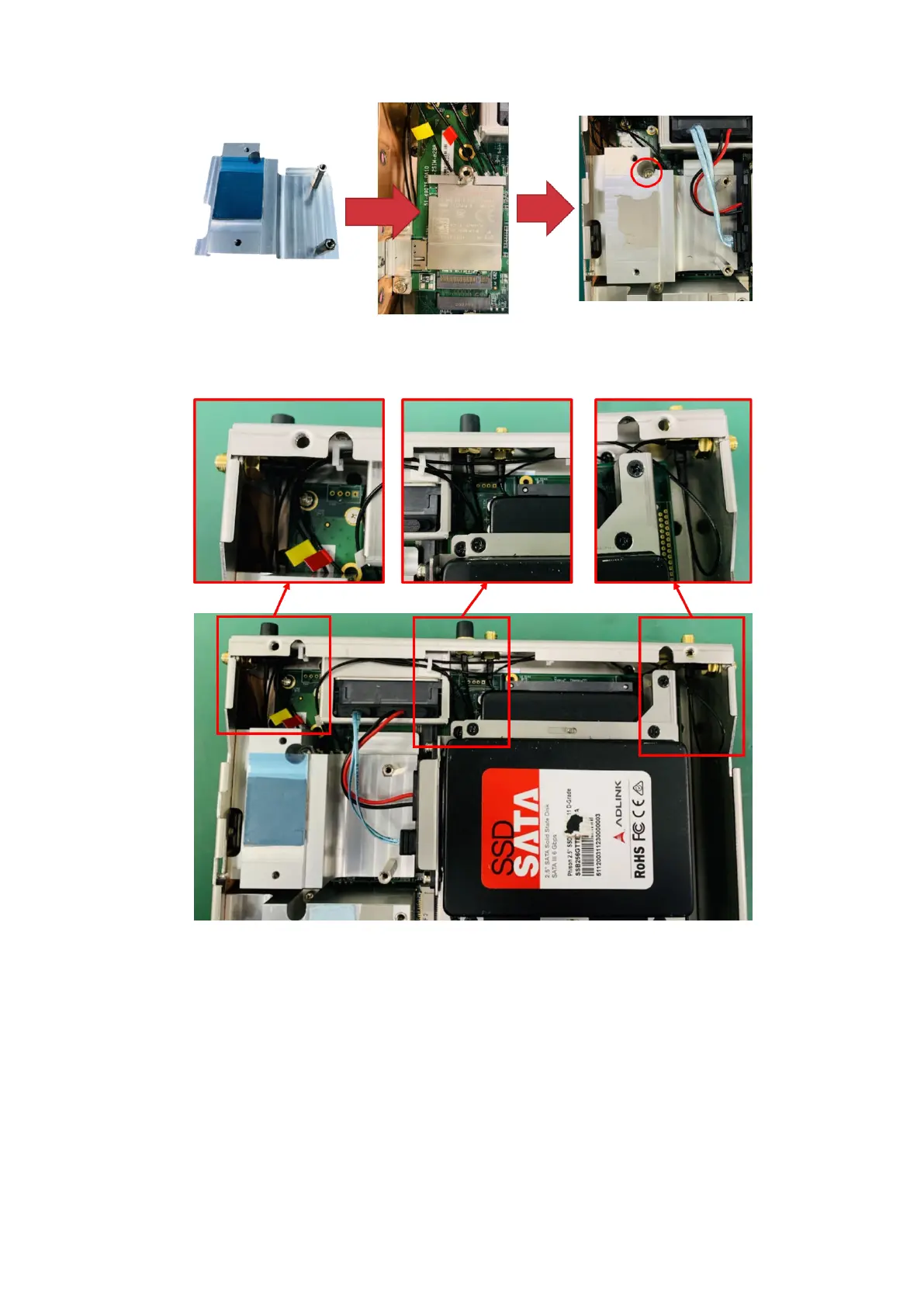

Figure 24. Heat sink installation

12. Organize the SMA cables in the chassis to avoid kinks.

Figure 25. SMA cable organization

13. Use the twelve screws to reattach the bottom panel to the chassis and the heat sink.

Installation procedure for 4G and 5G expansion modules
