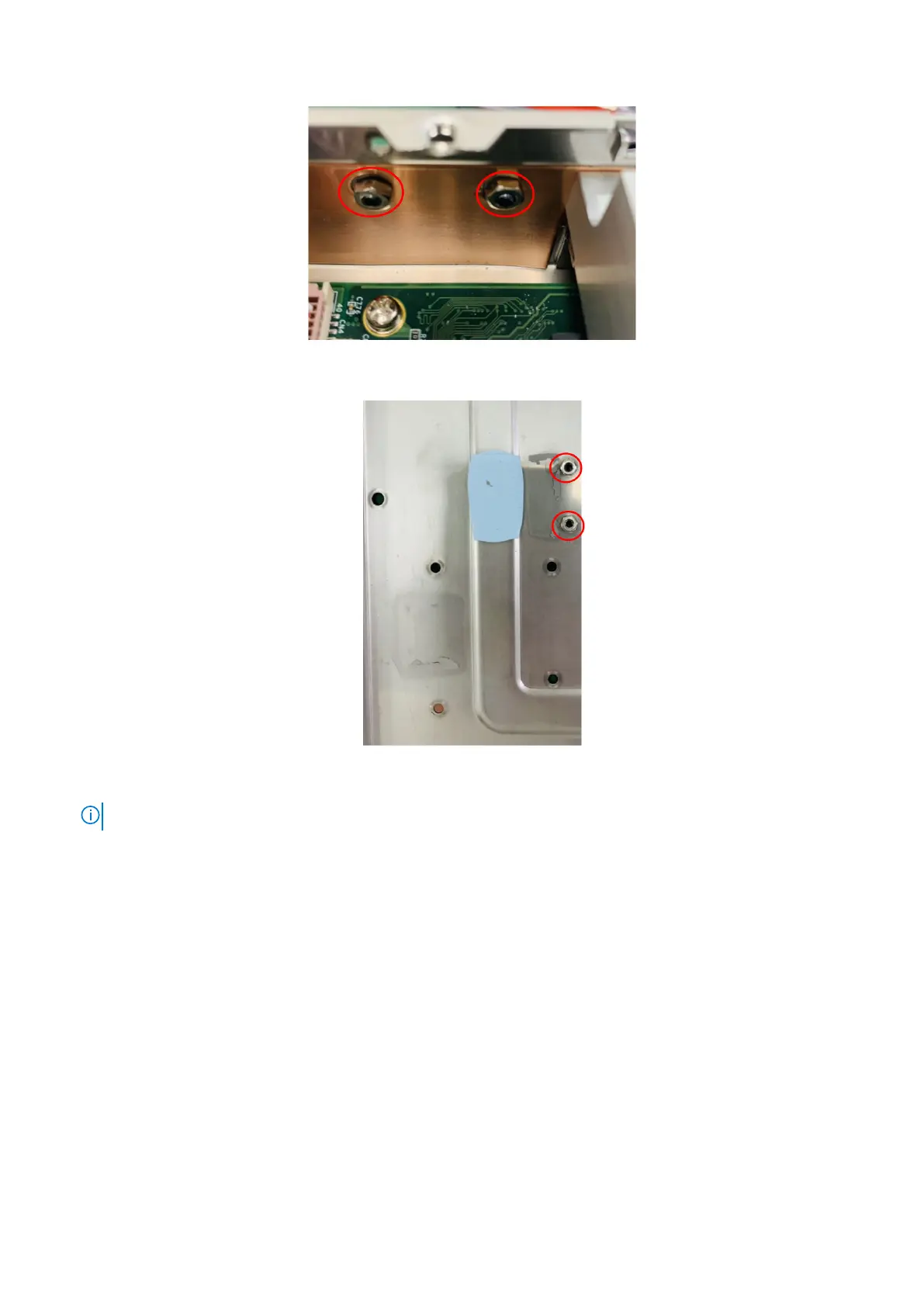

Figure 32. Install screws and nuts on side panel
Figure 33. Install screws and nuts on bottom panel
NOTE: Reuse screws removed from this step.
7. Remove the screws of the front I/O panel, as shown in the following figure. Remove the 4-port COM cable from the front
I/O panel.
Installation procedure for 2x isolated COM 422/485 or 232 uFM module
23
