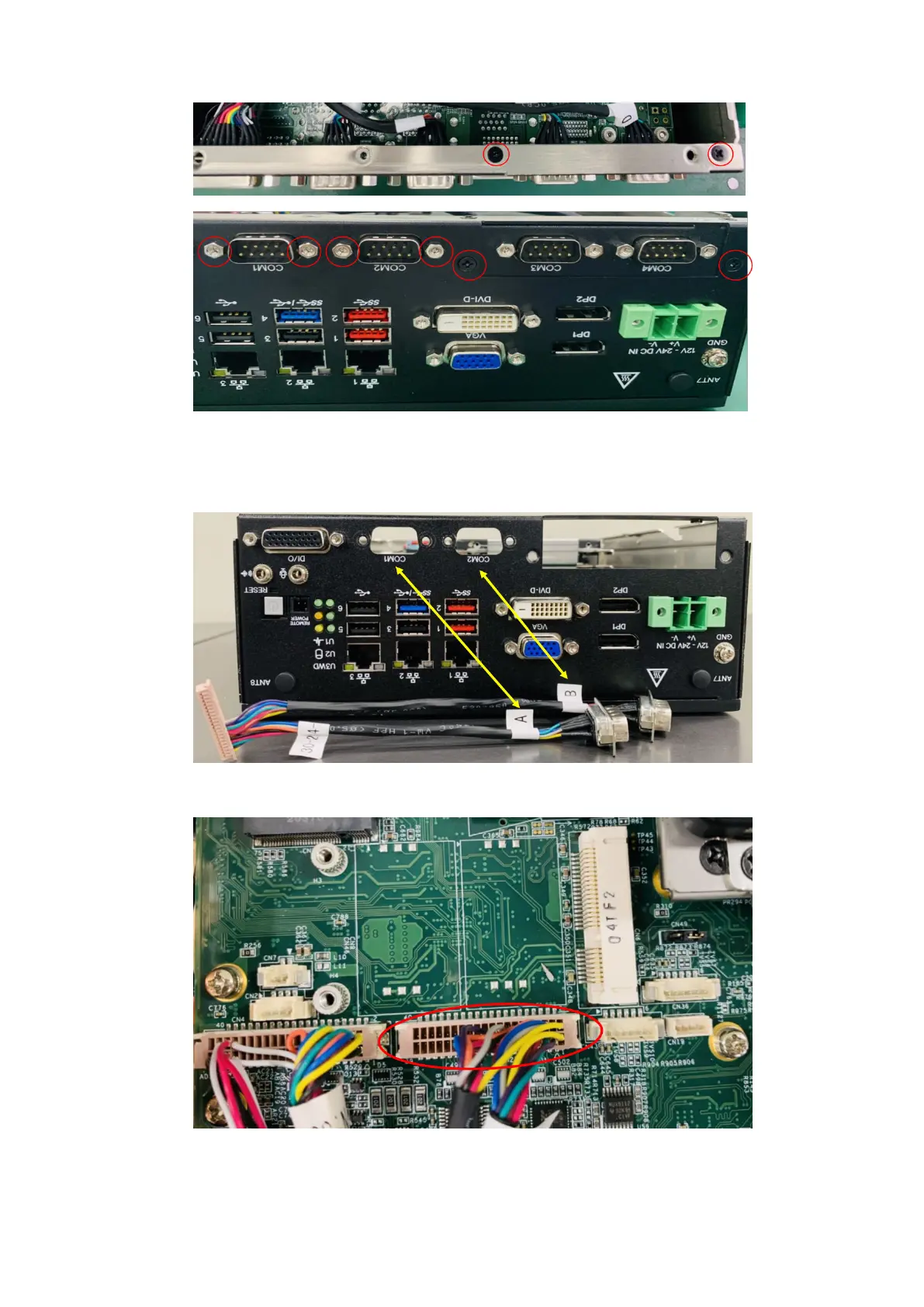

Figure 34. I/O panel screw locations
8. Install the new dual-port COM cable (included). Connect to the front I/O panel with the port labeled A to COM1 and B to
COM2, then connect the other end of the cable to the motherboard header.
Figure 35. Connect new COM ports to I/O panel
Figure 36. Connect dual-port COM cable to motherboard header
24
Installation procedure for 2x isolated COM 422/485 or 232 uFM module
