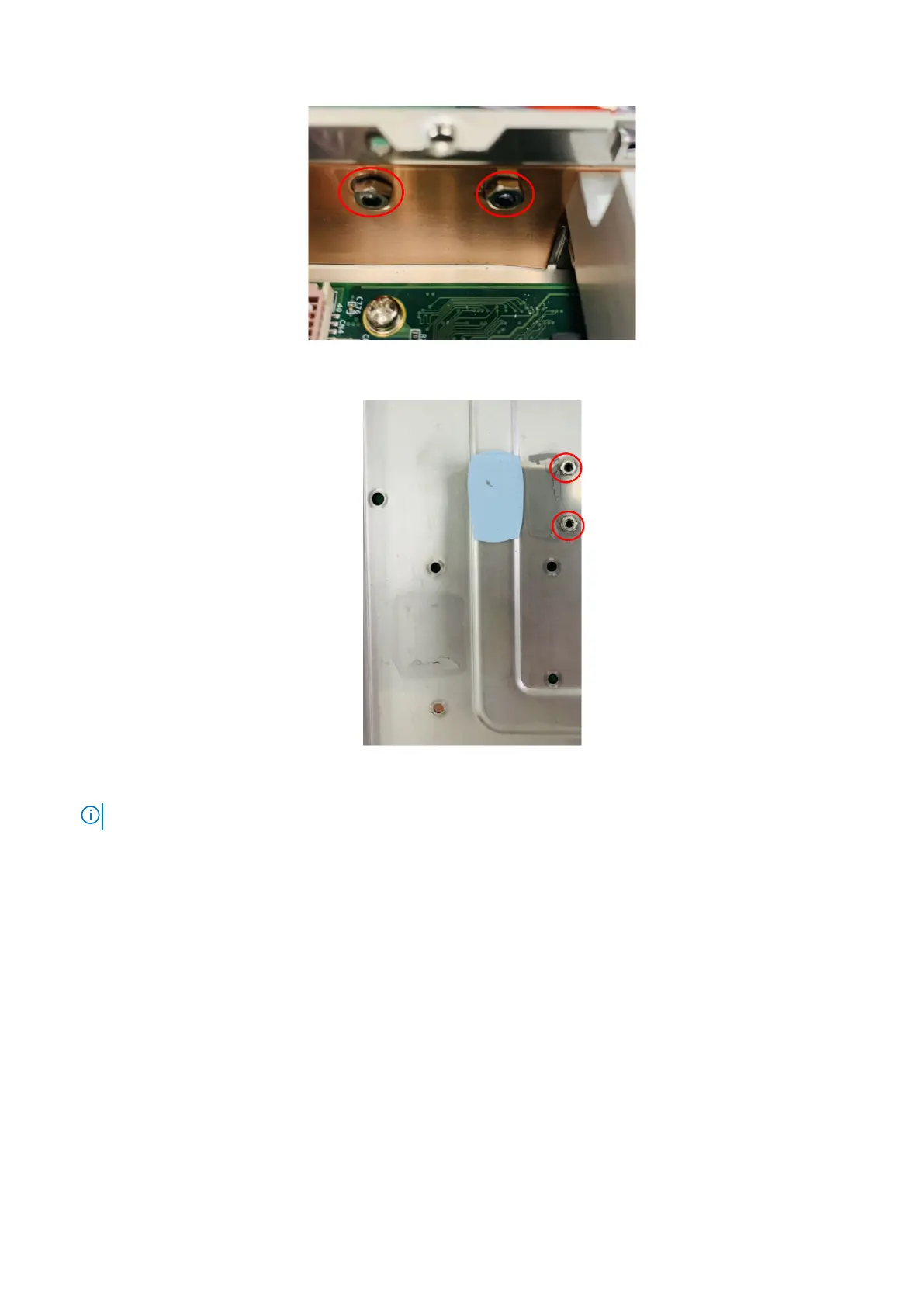

Figure 49. Install screws and nuts on side panel
Figure 50. Install screws and nuts on bottom panel
NOTE: Reuse screws removed from Step 1. Nuts are included in the kit.
7. Remove the screws of the front I/O panel, as shown in the following figure. Remove the 4-port COM cable from the front
I/O panel.
32
Installation procedure for 2x GbE with PoE uFM module
