Dell EMC Edge Gateway 5200 Service Manual

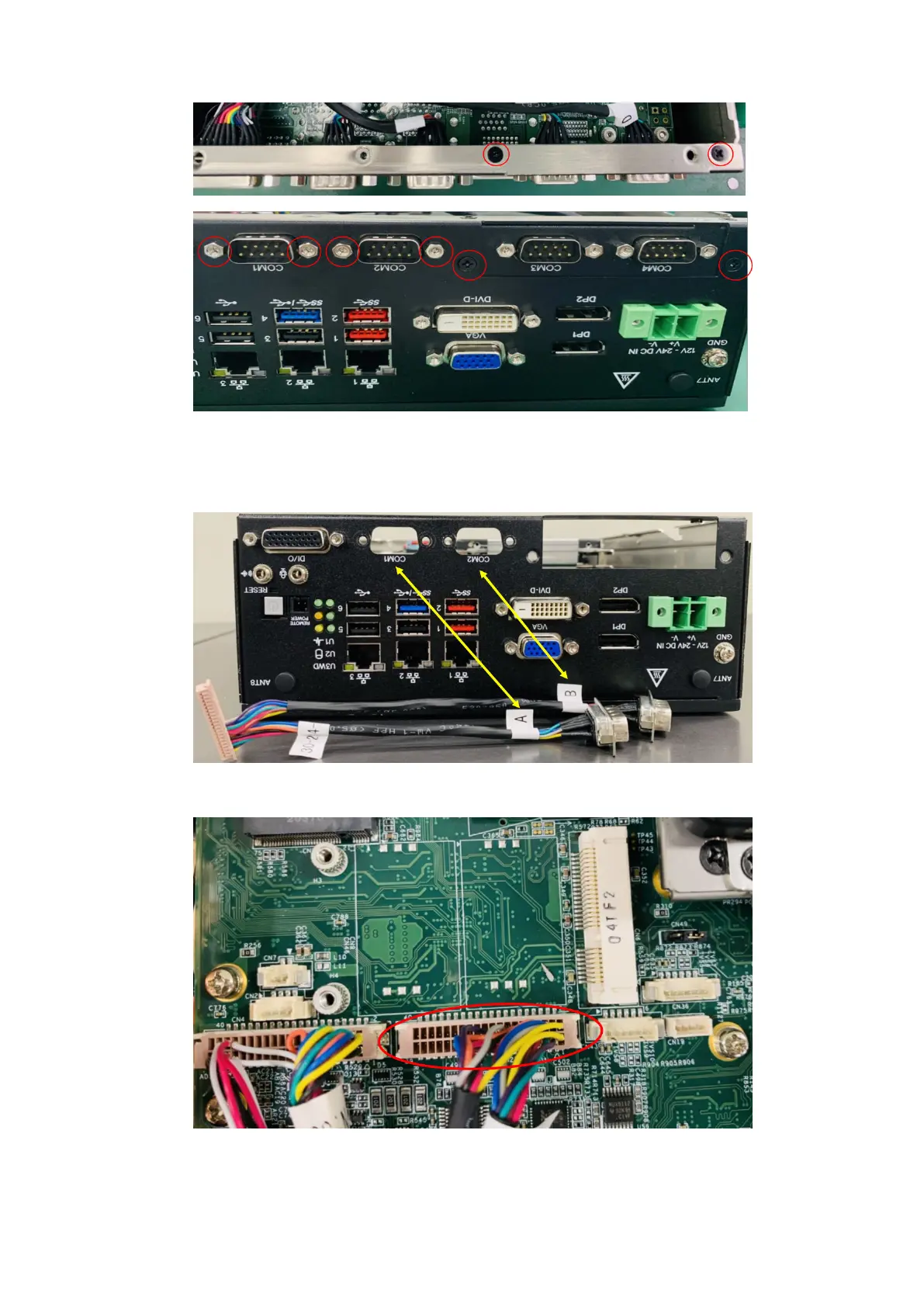

Figure 51. I/O panel screw locations
8. Install the new dual-port COM cable (included). Connect to the front I/O panel with the port labeled A to COM1 and B to
COM2, then connect the other end of the cable to the motherboard header.
Figure 52. Connect new COM ports to I/O panel
Figure 53. Connect dual-port COM cable to motherboard header
Installation procedure for 2x GbE with PoE uFM module
33
