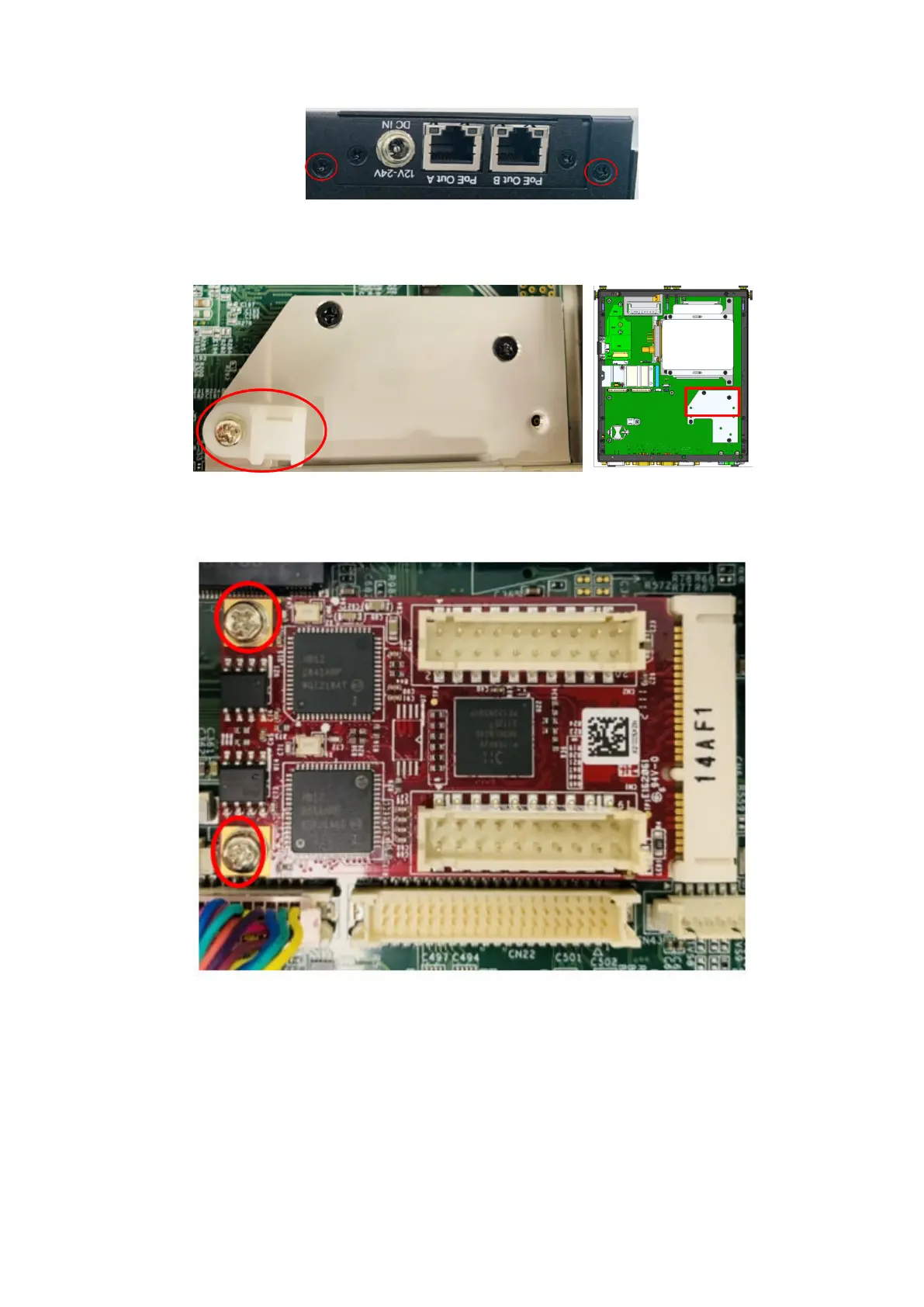

Figure 59. GbE with PoE I/O panel secured to front I/O panel
13. Install the cable clip to the bracket, as shown in the following figure.
Figure 60. Cable clip on bracket
14. Secure the mPCIe LAN board to the motherboard, as shown in the following figure.
Figure 61. mPCIe LAN board secured to motherboard
15. Connect the LAN cables from the GbE with PoE module to the mPCIe LAN board. Use cable ties, as shown with red circles
in the following figure.
36
Installation procedure for 2x GbE with PoE uFM module
