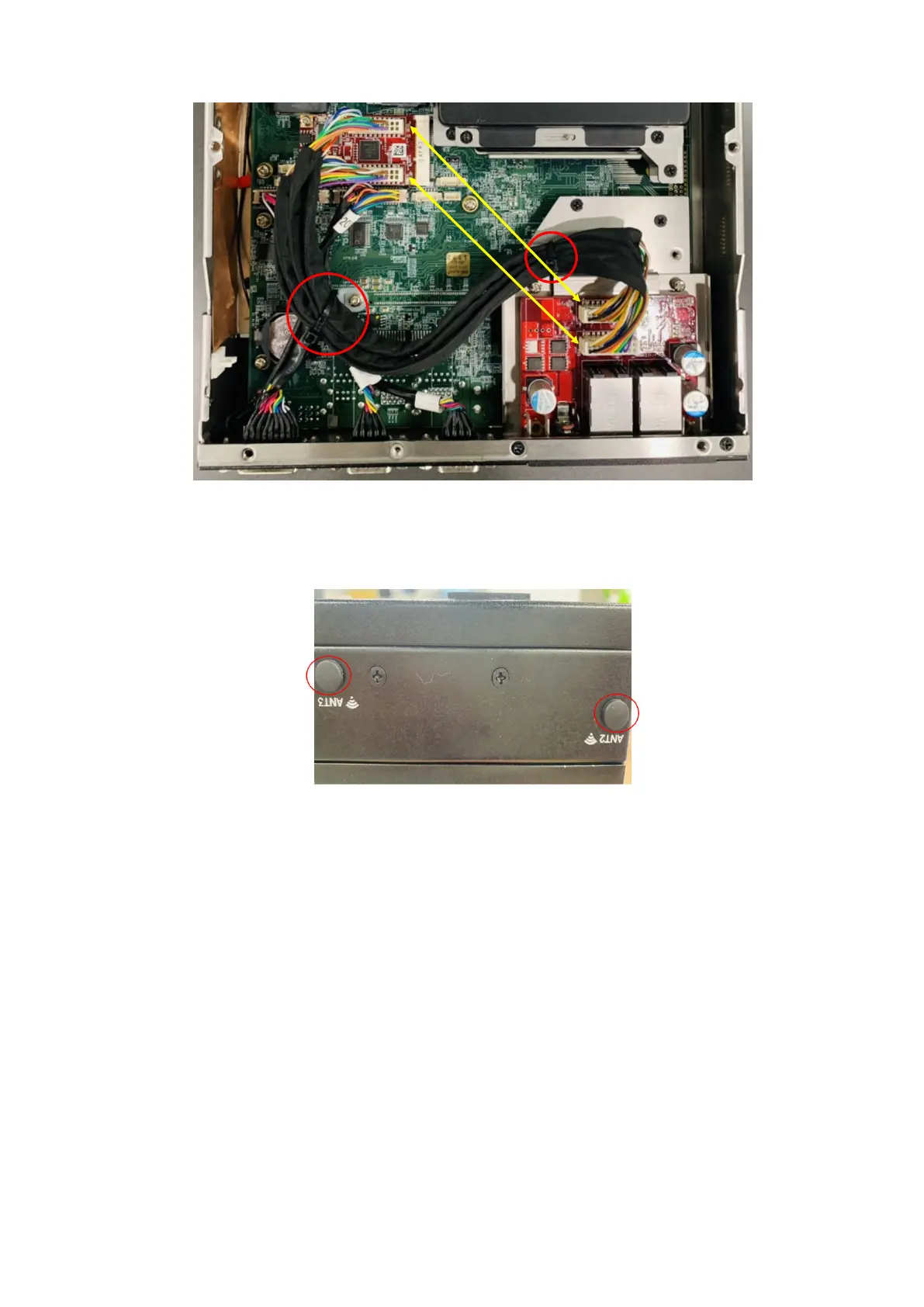

Figure 62. LAN cables from GbE with PoE module to mPCIe LAN board with cable ties
16. Use the screws to reattach the bottom panel. See the screw locations in step 1.
17. Insert the rubber caps into the antenna holes, as shown in the following figure.
Figure 63. Antenna hole caps
Installation procedure for 2x GbE with PoE uFM module
