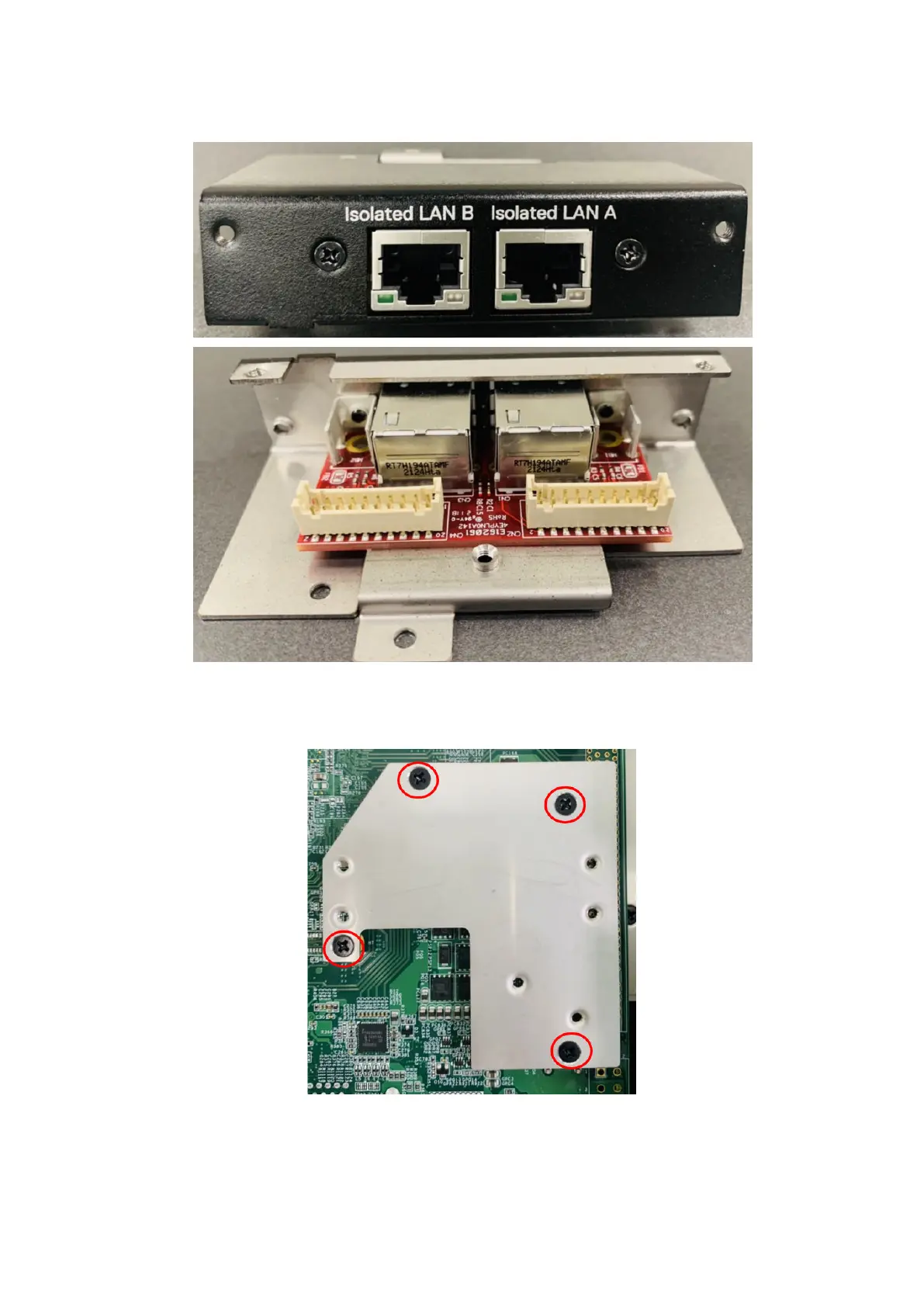

9. Secure the GbE LAN uFM module to the GbE LAN I/O panel. Use the two screws on the panel, as shown in the following
figure.
Figure 74. GbE LAN ports installed on GbE LAN I/O panel
10. Install the bracket on the motherboard, as shown in the following figure.
Figure 75. Bracket installed
Installation procedure for 2x GbE LAN uFM module
43
