Dell EMC Edge Gateway 5200 Service Manual

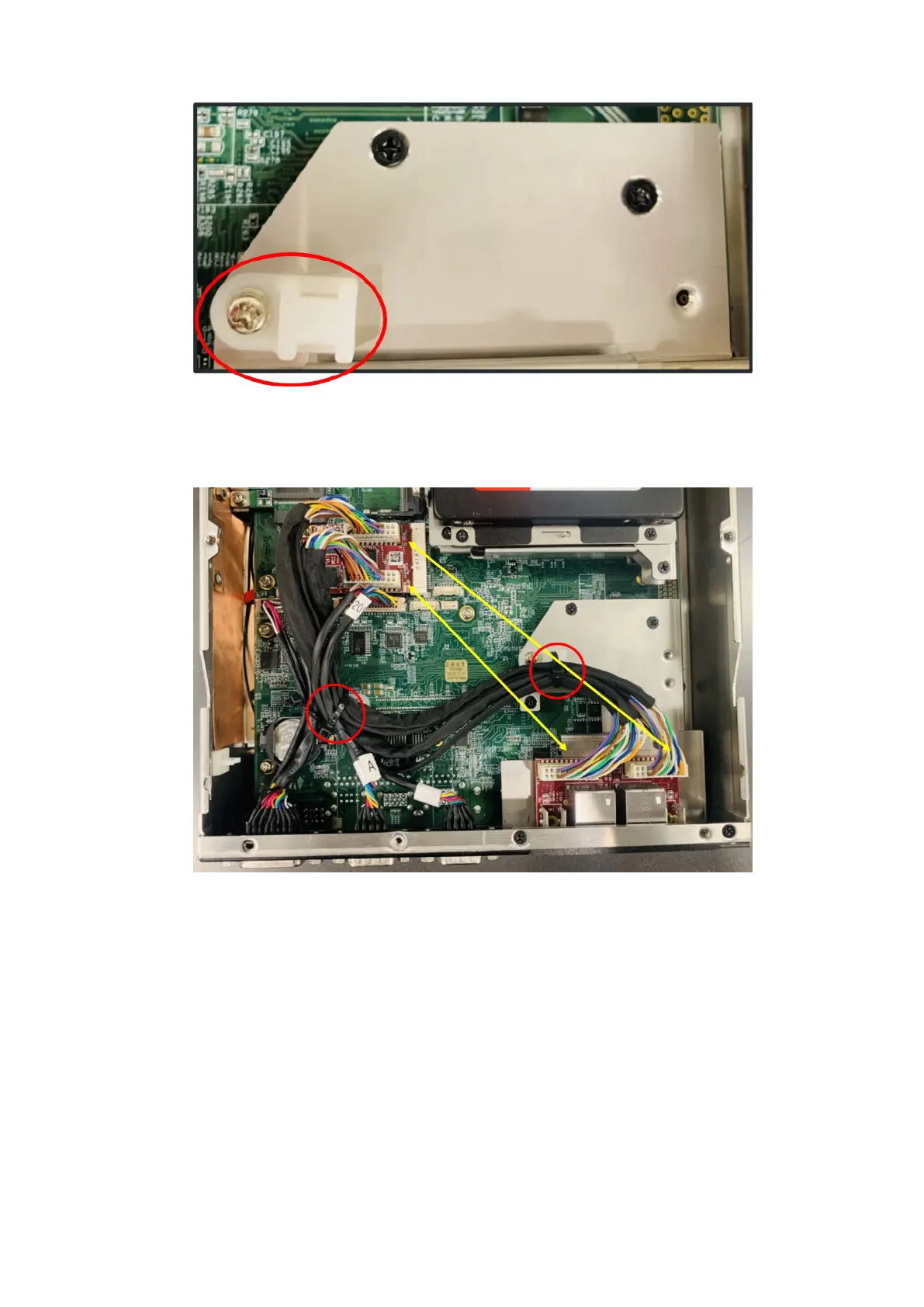

Figure 78. Cable clip attached
14. Connect the LAN cables from the uFM module to the mPCIe module. Use a cable tie, as shown with red circles in the
following figure.
Figure 79. Cables from uFM to mPCIe module with cable ties
15. Use the screws to reattach the bottom panel. See the screw locations in step 1.
16. Insert the rubber caps into the antenna holes, as shown in the following figure.
Installation procedure for 2x GbE LAN uFM module
45
