Dell EMC Edge Gateway 5200 Service Manual

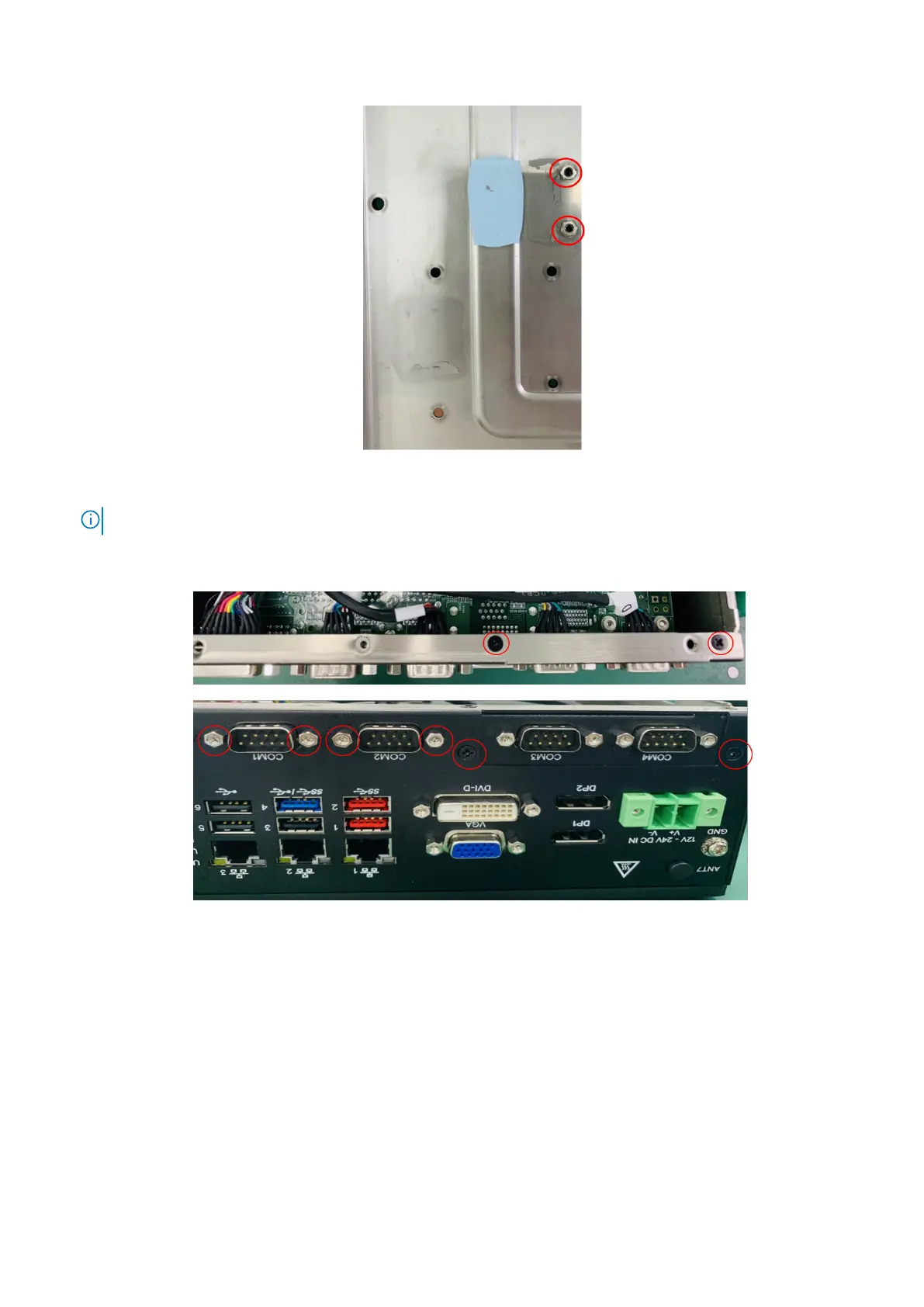

Figure 87. Install screws and nuts on bottom panel
NOTE: Reuse screws removed from step one. Nuts are included in the kit.
7. Remove the screws of the front I/O panel, as shown in the following figure. Remove the 4-port COM cable from the front
I/O panel.
Figure 88. I/O panel screw locations
8. Install the new dual-port COM cable (included). Connect to the front I/O panel with the port labeled A to COM1 and B to
COM2, then connect the other end of the cable to the motherboard header.
50
Installation procedure for 2x Canbus uFM module
