Inside the system

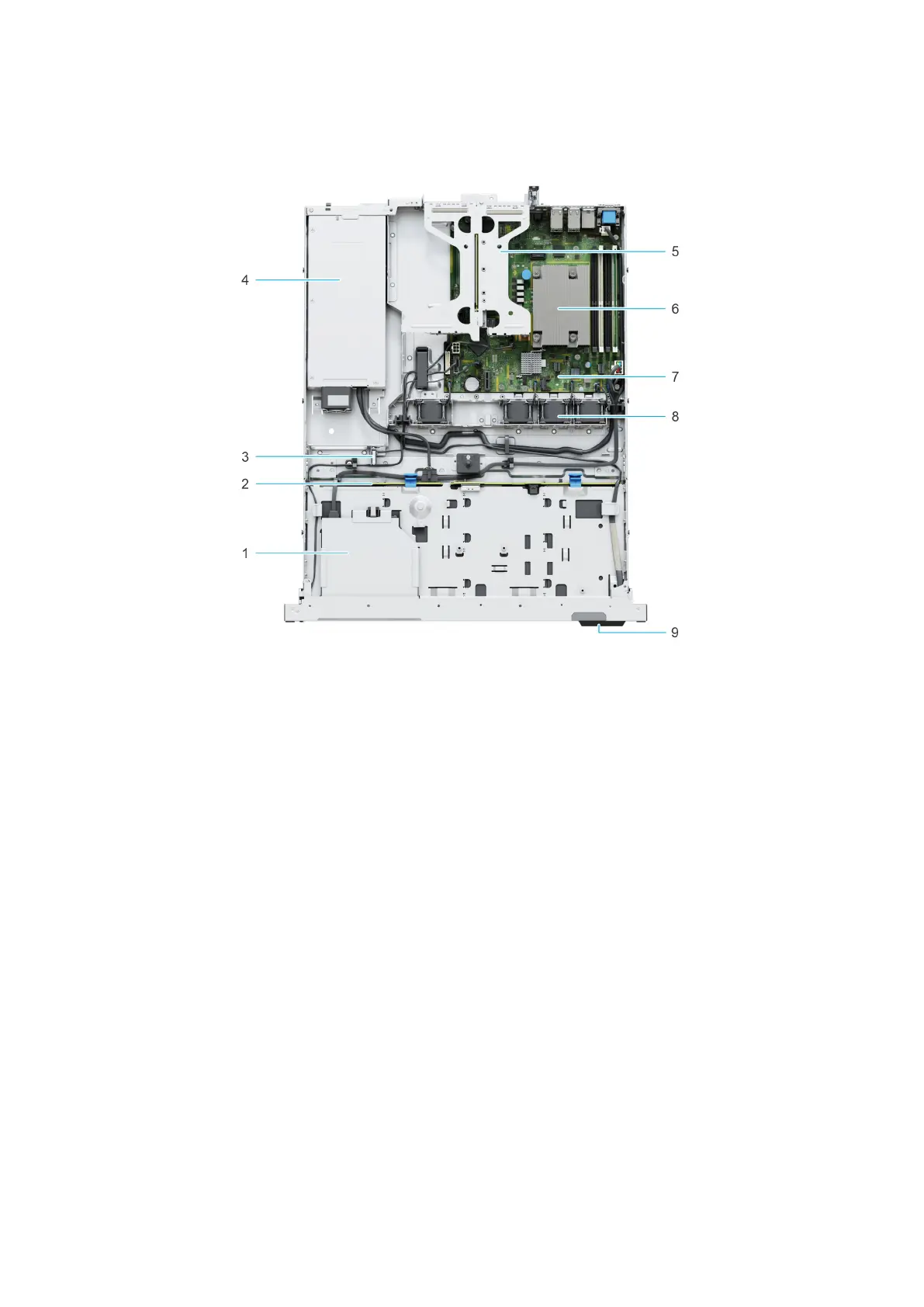

Figure 5. Inside view of the system with backplane
1.
Optical drive 2. Backplane
3. Intrusion switch 4. Cabled power supply unit
5. Expansion card riser 6. Processor heat sink
7. System board 8. Cooling fans
9. Information tag
10 PowerEdge R250 system overview
