Table 13. Cable routing - 4 x 3.5-inch cabled drive configuration
From To
HDD0 (HDD0 signal connector) SL1_PCH_SA1 (Signal connector on system board)
HDD1 (HDD1 signal connector) SL1_PCH_SA1 (Signal connector on system board)
HDD2 (HDD2 signal connector) SL1_PCH_SA1 (Signal connector on system board)
HDD3 (HDD3 signal connector) SL1_PCH_SA1 (Signal connector on system board)
Power connector on HDD0, HDD1, HDD2, and HDD 3 PIB_CONNECTOR (PIB connector on system board)
ODD (Optical Disk Drive) connector HDD/ODD_PWR (HDD/ODD power connector on system
board)

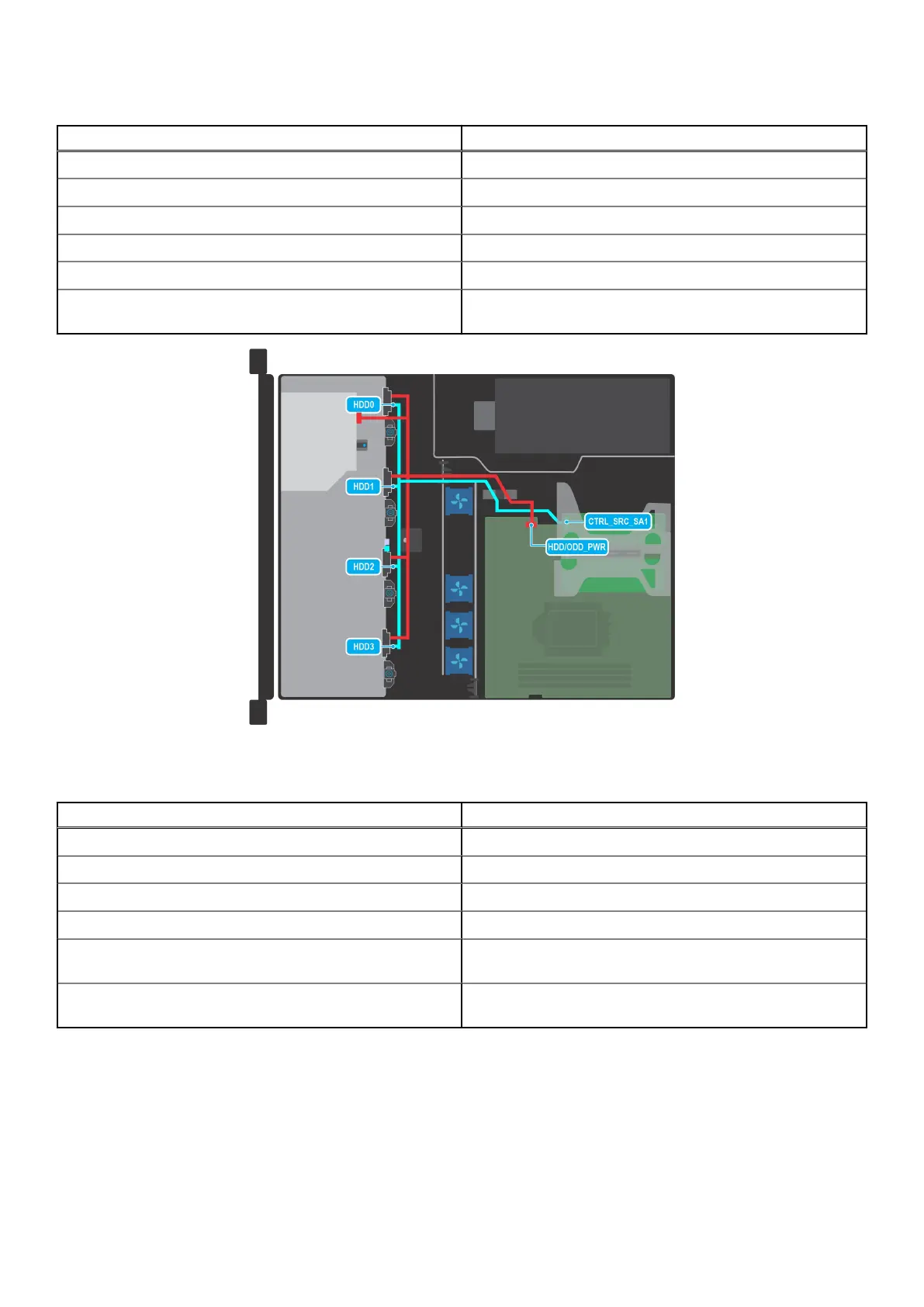

Figure 37. Cable routing - 4 x 3.5-inch cable drive configuration with PERC
Table 14. Cable routing - 4 x 3.5inch cable drive configuration with PERC
From To
HDD0 (HDD0 signal connector) CTRL_SRC_SA1 (Signal connector on the PERC)
HDD1 (HDD1 signal connector) CTRL_SRC_SA1 (Signal connector on the PERC)
HDD2 (HDD2 signal connector) CTRL_SRC_SA1 (Signal connector on the PERC)
HDD3 (HDD3 signal connector) CTRL_SRC_SA1 (Signal connector on the PERC)
Power connector on HDD0, HDD1, HDD2, and HDD 3 HDD/ODD_PWR (HDD/ODD power connector on system
board)
ODD (Optical Disk Drive) connector HDD/ODD_PWR (HDD/ODD power connector on system
board)
Installing and removing system components 45
