Replacing the processor fan
WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the
steps in Before working inside your computer. After working inside your computer, follow the instructions in After working inside
your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/
regulatory_compliance.
Identifier GUID-29BDC32B-A0D0-4B0E-A0D1-6266AF234F5E
Status Released
Procedure

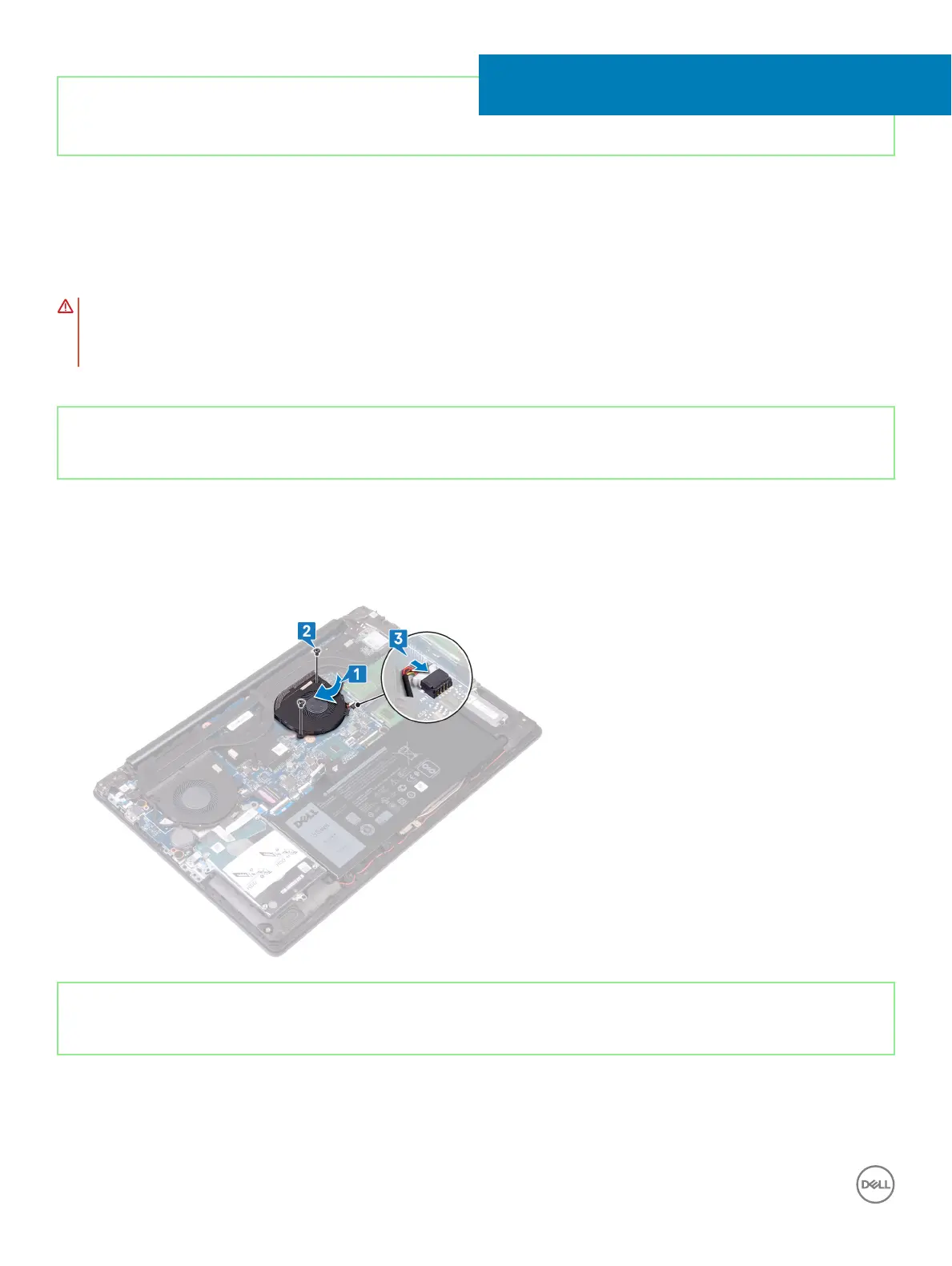

1 Align the screw holes on the processor fan with the screw holes on the palm rest and keyboard assembly.
2 Replace the two screws (M2.5x6) that secure the processor fan to the palm rest and keyboard assembly.
3 Slide and connect the processor-fan cable into the connector on the system board.
Identifier GUID-742603A9-6883-4879-8F67-7C3DC7AFB5AD
Status Released
Post-requisites
Replace the base cover.
