Dell Inspiron 14 5410 Service Manual

Touchpad
Removing the touchpad
Prerequisites
1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
About this task

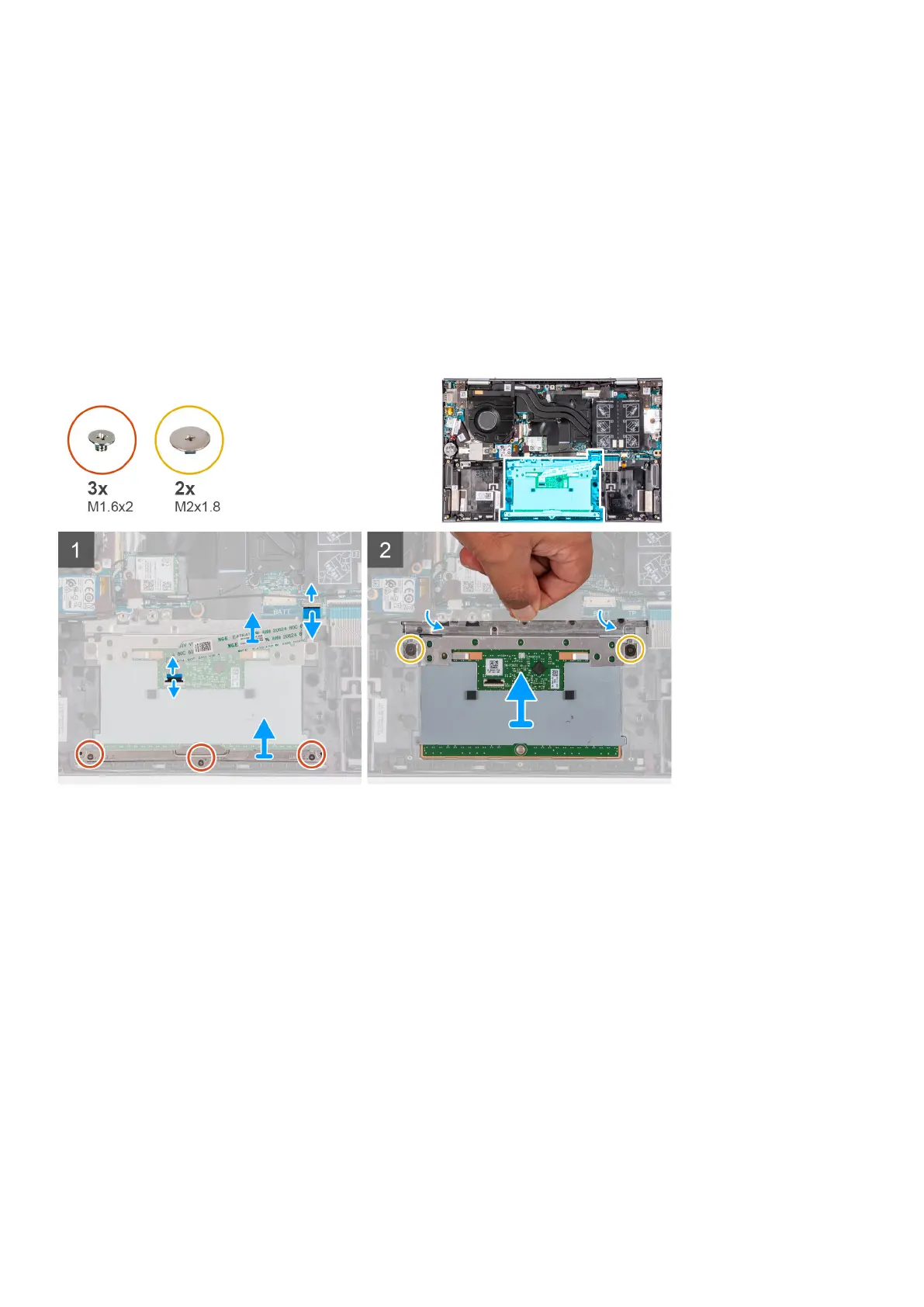

The following image indicates the location of the touchpad and provides a visual representation of the removal procedure.
Steps
1. Remove the three screws (M1.6x2) that secure the touchpad bracket to the palm-rest and keyboard assembly.
2. Lift the touchpad bracket off the palm-rest and keyboard assembly.
3. Open the latch, and disconnect the touchpad cable from the touchpad and system board.
4. Place the touchpad cable on a clean surface.
5. Lift the transparent flap and remove the two screws (M2x1.8) that secure the touchpad to the palm-rest and keyboard
assembly.
6. Slide and lift the touchpad off the palm-rest and keyboard assembly.
Installing the touchpad
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following image indicates the location of the touchpad and provides a visual representation of the installation procedure.
44
Removing and installing components

Dell Inspiron 14 5410 Specifications

General

Storage	256GB, 512GB, or 1TB M.2 PCIe NVMe SSD
Graphics	Intel Iris Xe Graphics
Display	14-inch FHD (1920 x 1080) Anti-glare
RAM	8GB DDR4 3200MHz
Operating System	Windows 10 Home
Battery	4-Cell, 54WHr Integrated
Ports	2 x USB 3.2 Gen 1, 1 x USB 3.2 Gen 2 Type-C, 1 x HDMI 1.4, 1 x headphone/microphone combo jack
Wireless	Wi-Fi 6, Bluetooth 5.1
Webcam	720p HD camera
Processor	11th Generation Intel Core i5-11300H
