Installing the power-adapter port
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

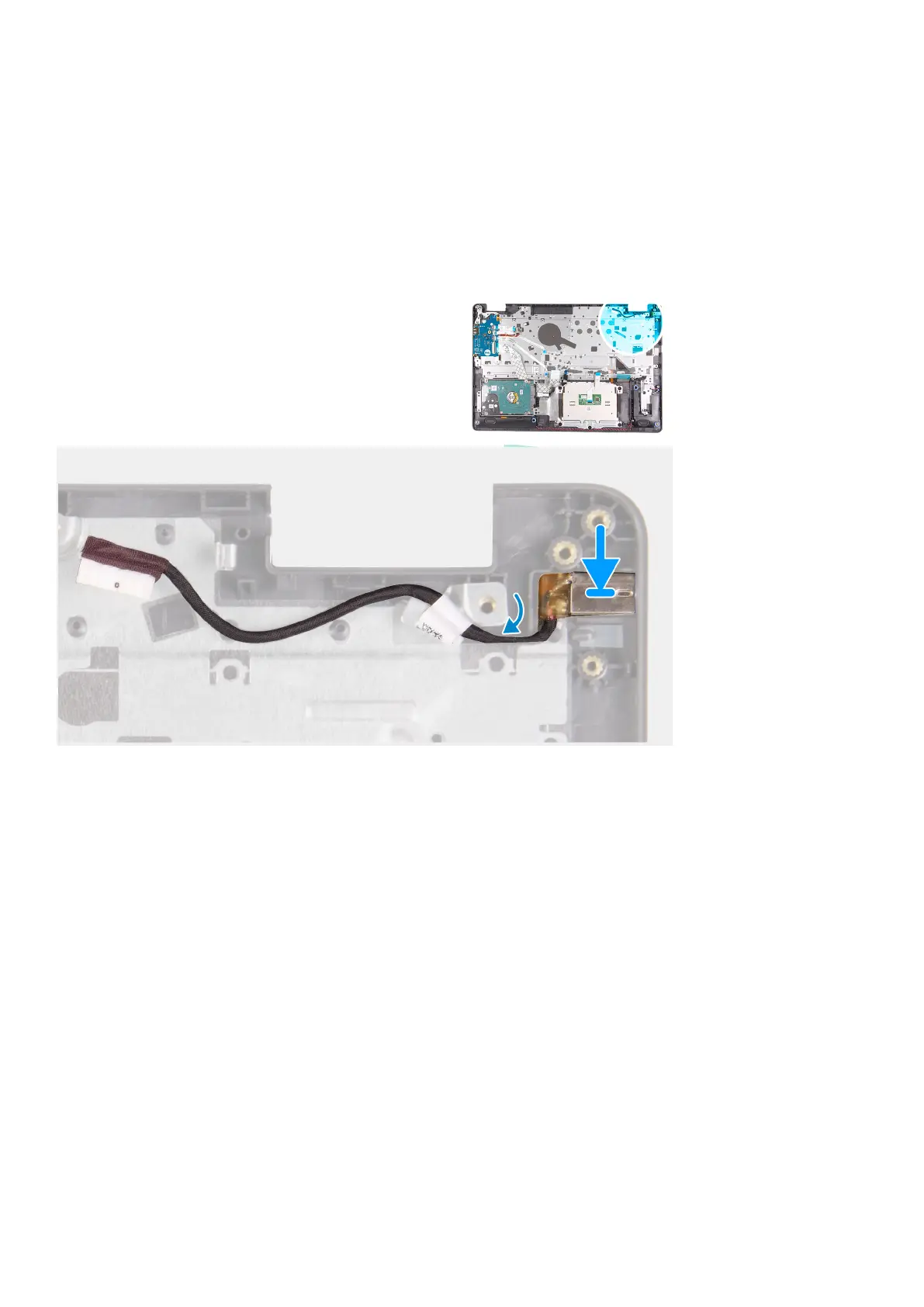

The following images indicate the location of the power-adapter port and provides a visual representation of the installation
procedure.
Steps
Place the power-adapter port into its slot on the palm-rest and keyboard assembly.
Next steps
1. Install the system board.
2. Install the display assembly.
3. Install the wireless card.
4. Install the fan.
5. Install the M.2 2230 solid-state drive, if applicable.
6. Install the M.2 2280 solid-state drive, if applicable.
7. Install the base cover.
8. Follow the procedure in After working inside your computer.
