Before You Begin: Dell Inspiron 8200

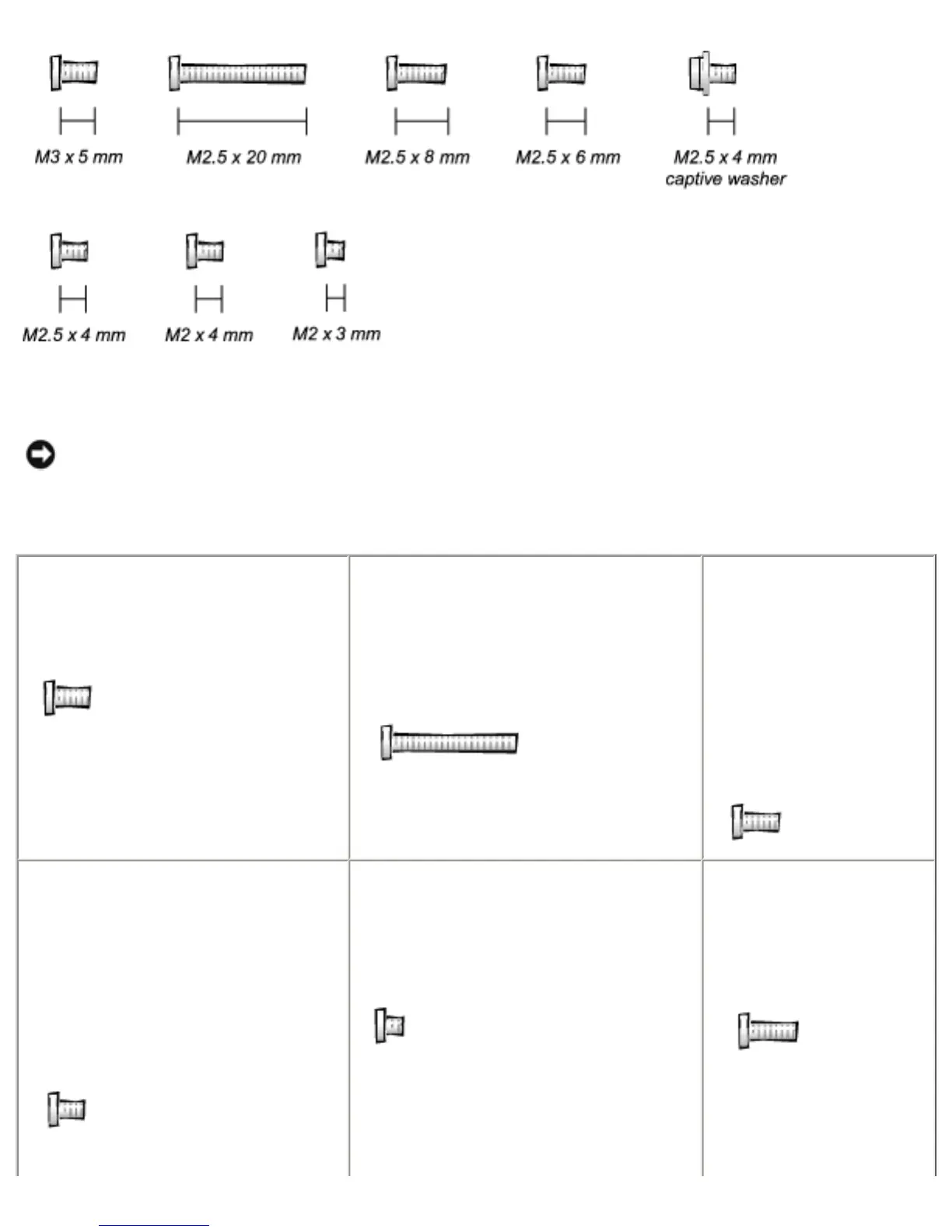

NOTICE: When reinstalling a screw, you must use a screw of the correct
diameter and length. Ensure that the screw is properly aligned with its
corresponding hole, and avoid overtightening.
Hard-Drive Door Security:
M3 x 5 mm (1 each)
Keyboard to Bottom Case:
M2.5 x 20 mm (4 each; one in
memory door and one in Mini
PCI door)
Display to Bottom
Case:
M2.5 x 6 mm (3
each; 2 at back of
computer; 1 at
display flex-cable
strain relief)
Display Bezel:
Rubber screw covers (4 each)
Plastic screw covers (2 each)
M2.5 x 4 mm (6 each)
Display Panel to Display
Mounting Bracket:
M2 x 3 mm (6 each)
Flex-Cable Mounting Bracket to
Top Cover:
Video Graphics
Board:
M2.5 x 8 (3 each)
