Dell Latitude 3340 2-in-1 User Manual

Steps

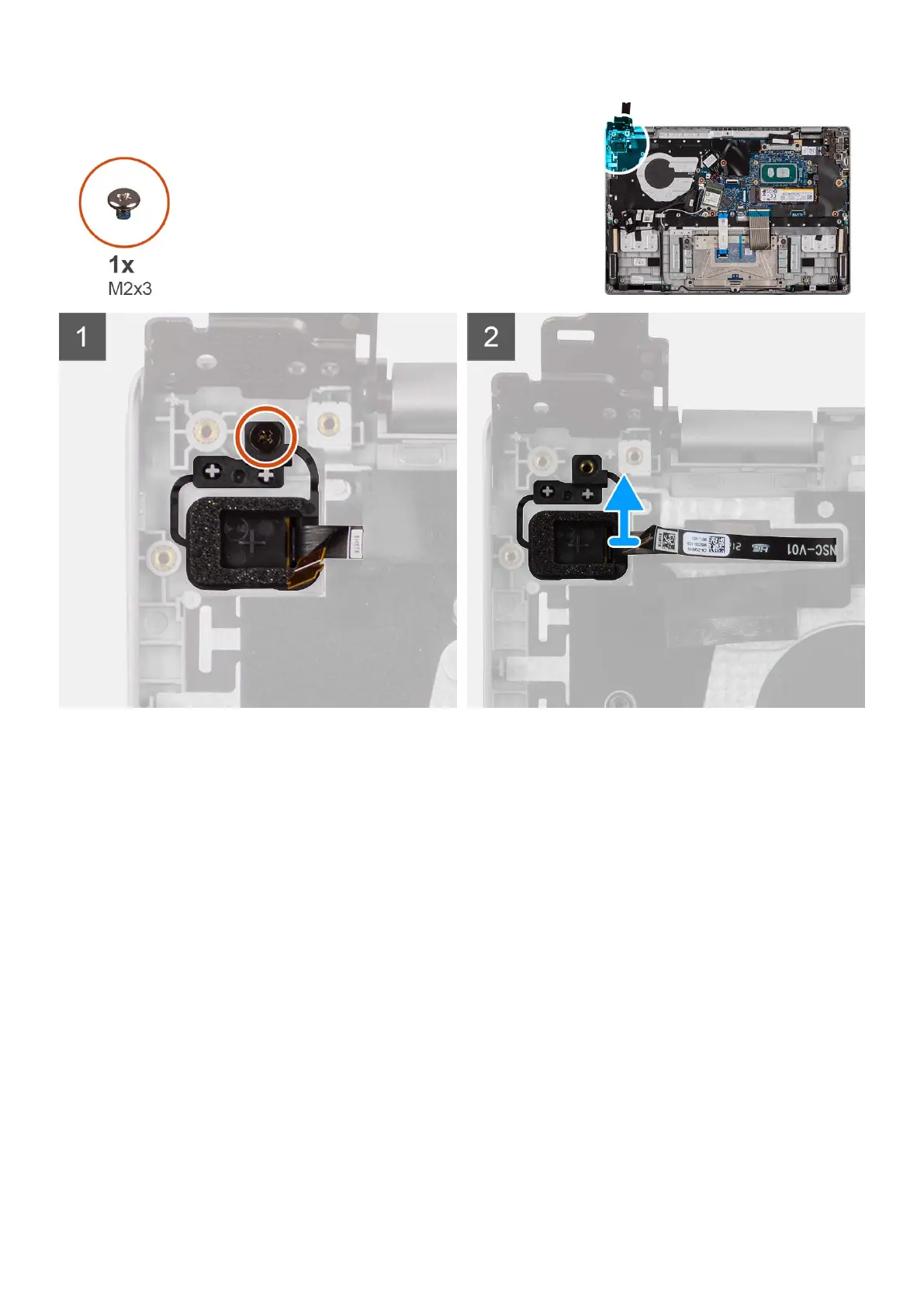

1. Remove the screw (M2x3) that secures the power button with optional fingerprint reader to the palm-rest and keyboard
assembly.
2. Peel off the fingerprint reader flexible printed circuits from the connector on the power button.
3. Remove the power button with optional fingerprint reader from the slot on the palm-rest and keyboard assembly.
Installing the power button with optional fingerprint reader
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task
The following images indicate the location of the power button with optional fingerprint reader and provide a visual
representation of the installation procedure.
Removing and installing components
39

Dell Latitude 3340 2-in-1 Specifications

General

Display	13.3-inch HD (1366 x 768) touchscreen
RAM	4GB DDR3L
Storage	128GB SSD
Battery	3-cell
Ports	2 x USB 3.0, 1 x USB 2.0, HDMI, RJ-45, SD card reader
Wireless	Wi-Fi 802.11ac, Bluetooth 4.0
