WARNING: Do not block, push objects into, or allow dust to accumulate in the air
vents. Do not store your Dell computer in a low-airflow environment, such as a
closed briefcase, while it is running. Restricting the airflow can damage the
computer or cause a fire. The computer turns on the fan when the computer gets
hot. Fan noise is normal and does not indicate a problem with the fan or the
computer.
Latitude E5530 — Front And Back View

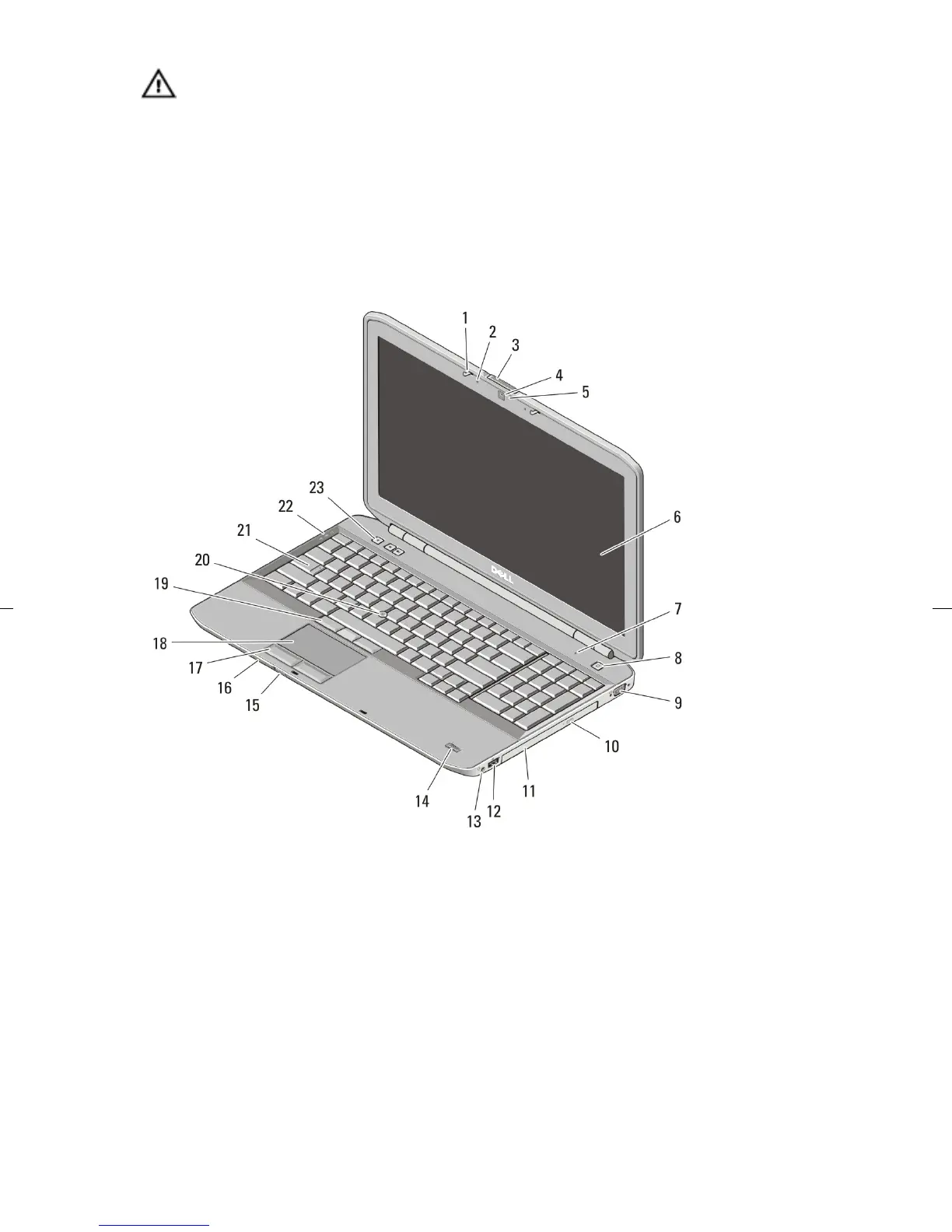

Figure 3. Front View
1. display latch
2. microphone (optional)
3. display release latch
4. camera (optional)
5. camera status light (optional)
6. display
7. microphone
8. power button
9. VGA connector
10. optical-drive eject button
11. optical drive
12. USB 2.0 connector
13. audio connector
14. fingerprint reader (optional)
3
