Dell Latitude LS - Connecting and Disconnecting the Computer

1-4 Dell Latitude LS Family Advanced Port Replicator User’s Guide
 
 !"#$%
Use the following instructions to attach external devices to the APR.
#'()"#$
*"#$+,
&%


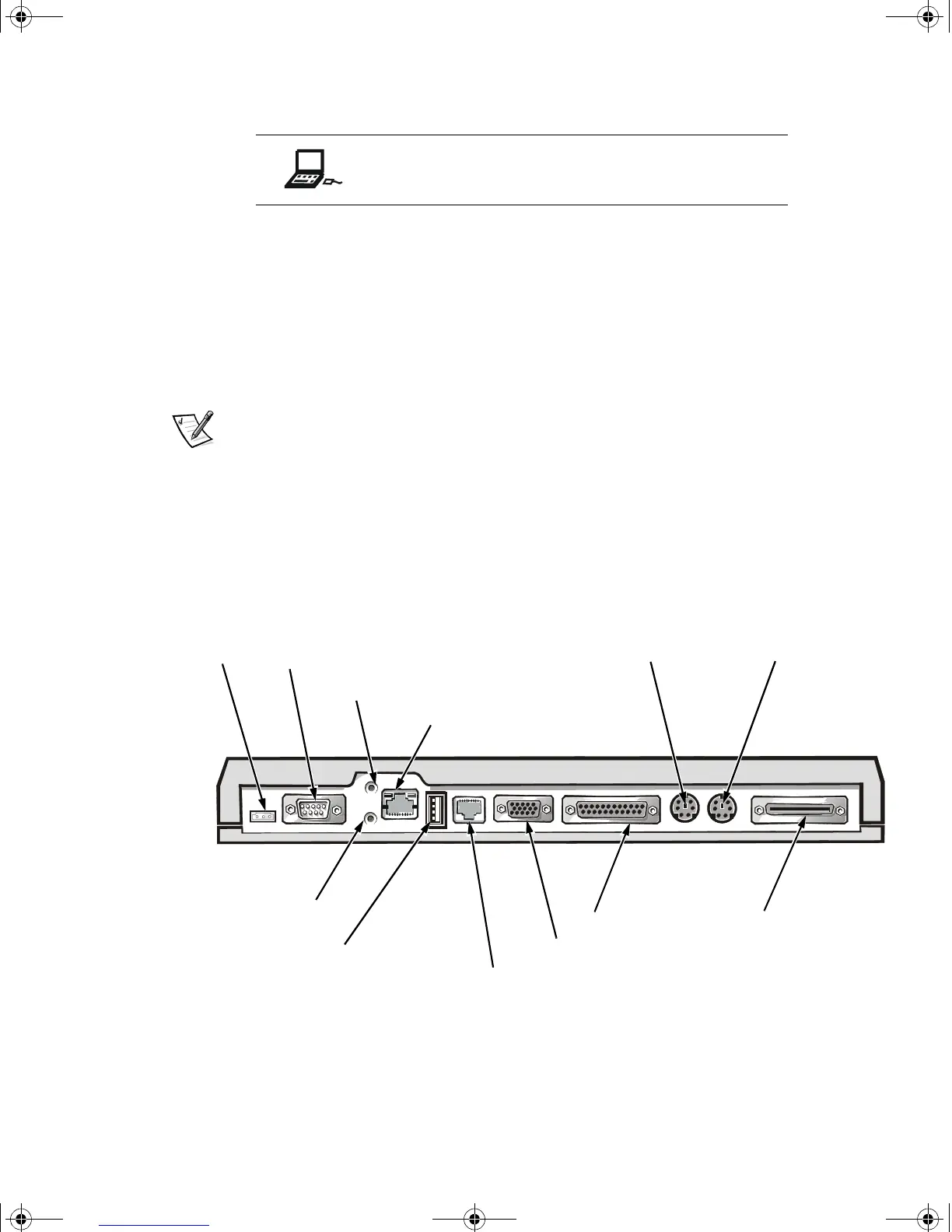

1. Refer to Figure 1-1 to attach external devices to the appropriate connectors on the
back of the APR.
NOTES: If the cable connector from the external device has thumbscrews, be
sure to tighten them to ensure a proper connection.
To connect the computer to a small computer system interface (SCSI) device, you
must attach a SCSI PC Card to your computer. See “PC Cards” in your online Dell
Latitude LS Family Portable Computers User’s Guide for information about using
PC Cards.
-
For detailed information on using external devices with your portable computer,
see “Using External Devices” in your online User’s Guide.

2. Connect the external devices to their power sources, if applicable.
An external CD-ROM, DVD-ROM, SuperDisk LS-120, or
diskette drive connects to the external media bay
connector.


PS/2 mouse connector keyboard connector
USB connector
serial connector
parallel connector
monitor connector
network connector
microphone connector
AC adapter connector
headphone/speakers connector
modem connector
external media bay
