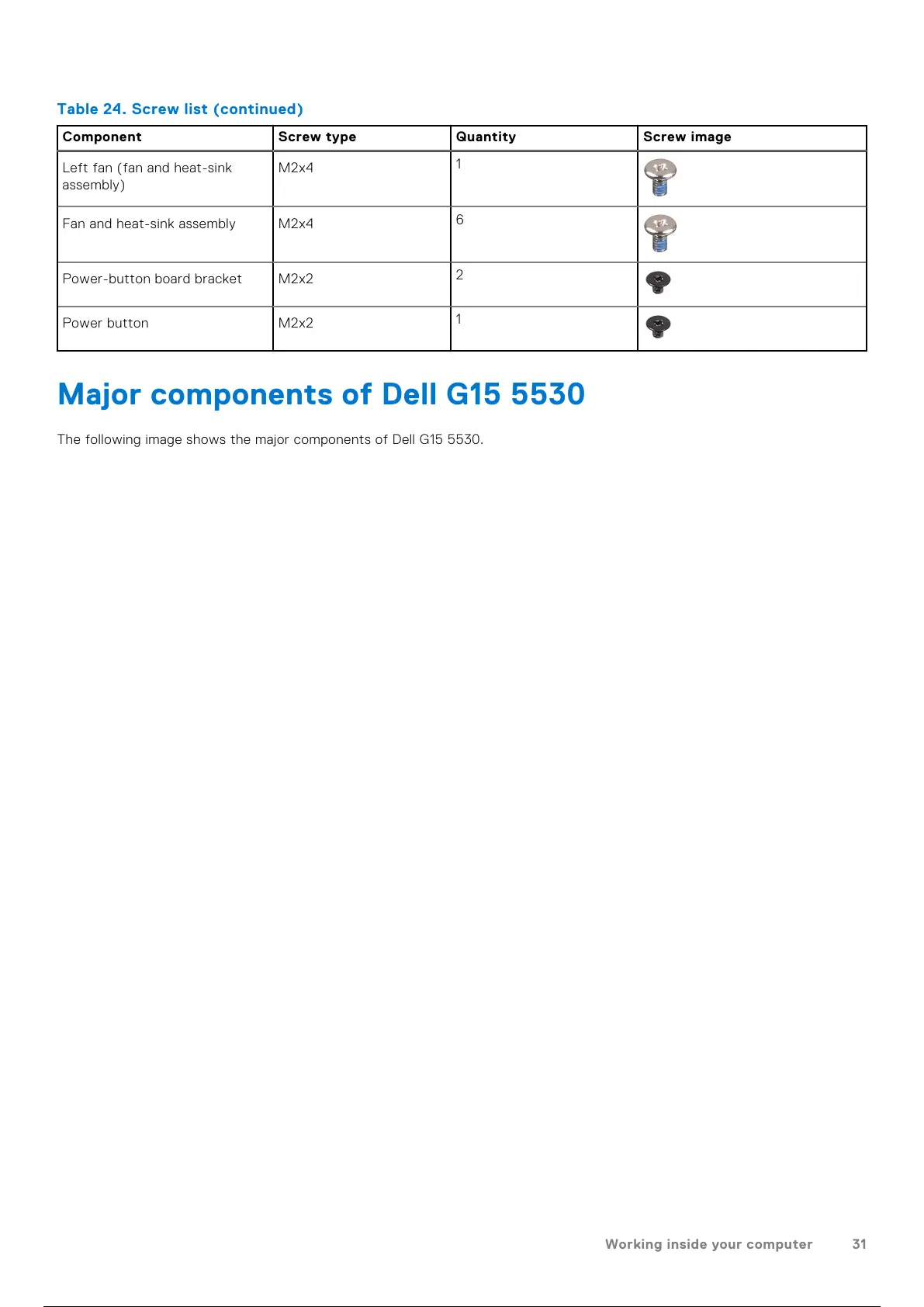

Table 24. Screw list(continued)
Component Screw type Quantity Screw image
Left fan (fan and heat-sink
assembly)
M2x4
1
Fan and heat-sink assembly M2x4
6
Power-button board bracket M2x2
2
Power button M2x2
1
Major components of Dell G15 5530
The following image shows the major components of Dell G15 5530.
Working inside your computer 31
