3. Lift the battery at a 45 degree angle and remove it from the palm-rest and keyboard assembly.
Installing the battery
Prerequisites
If you are replacing a component, remove the existing component before performing the installation procedure.
About this task

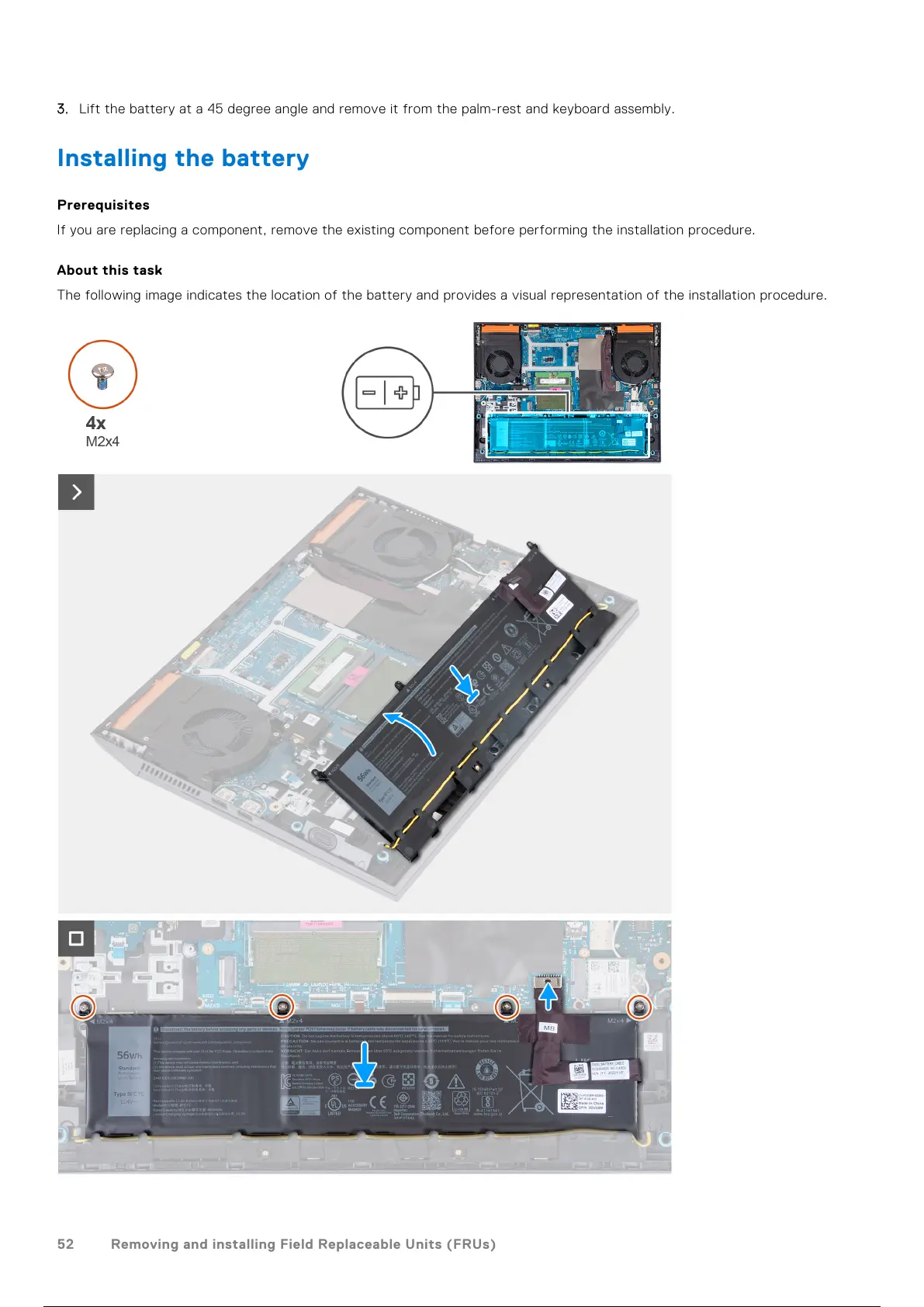

The following image indicates the location of the battery and provides a visual representation of the installation procedure.
52 Removing and installing Field Replaceable Units (FRUs)
