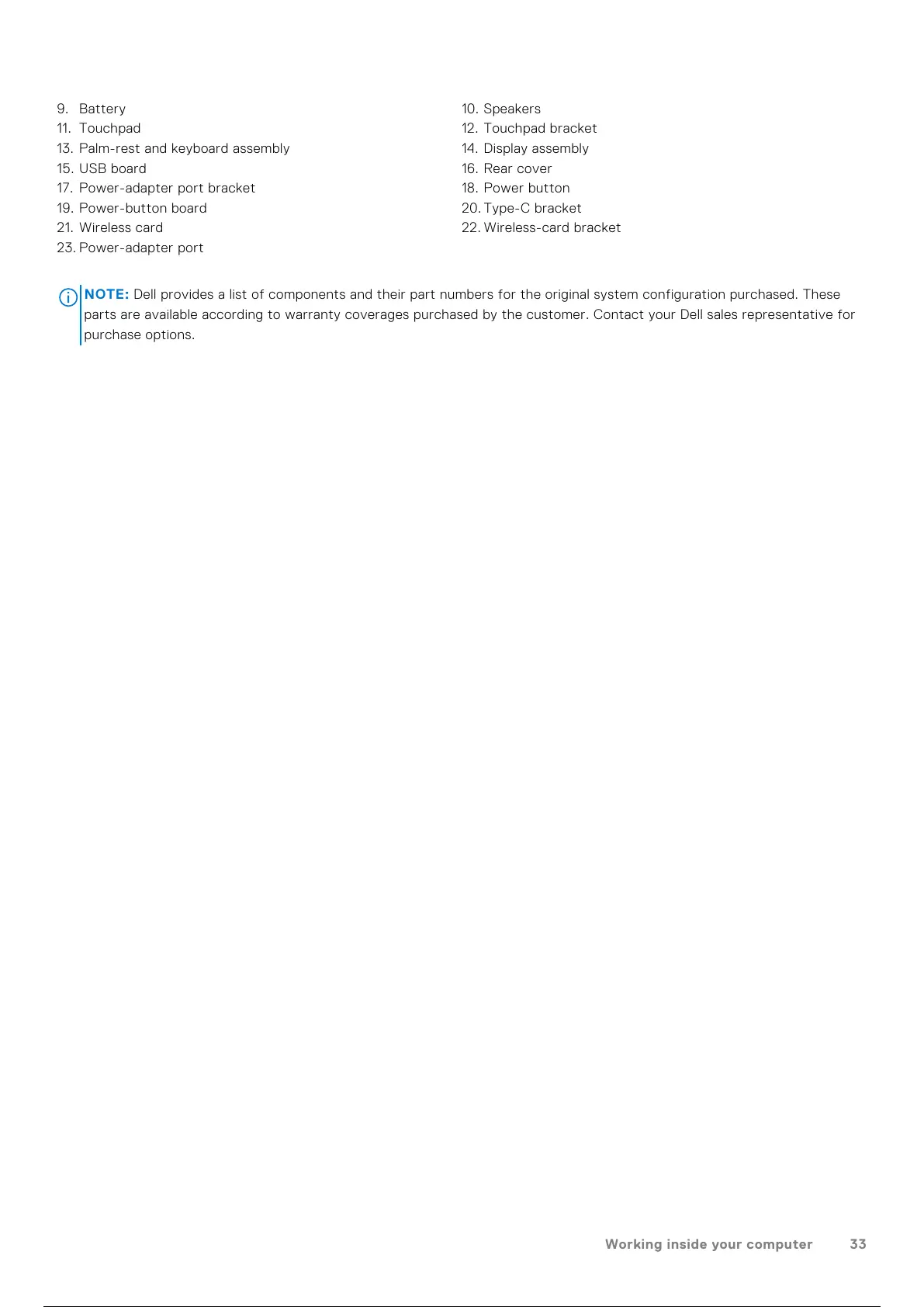

9. Battery 10. Speakers
11. Touchpad 12. Touchpad bracket
13. Palm-rest and keyboard assembly 14. Display assembly
15. USB board 16. Rear cover
17. Power-adapter port bracket 18. Power button
19. Power-button board 20. Type-C bracket
21. Wireless card 22. Wireless-card bracket
23. Power-adapter port
NOTE: Dell provides a list of components and their part numbers for the original system configuration purchased. These
parts are available according to warranty coverages purchased by the customer. Contact your Dell sales representative for
purchase options.
