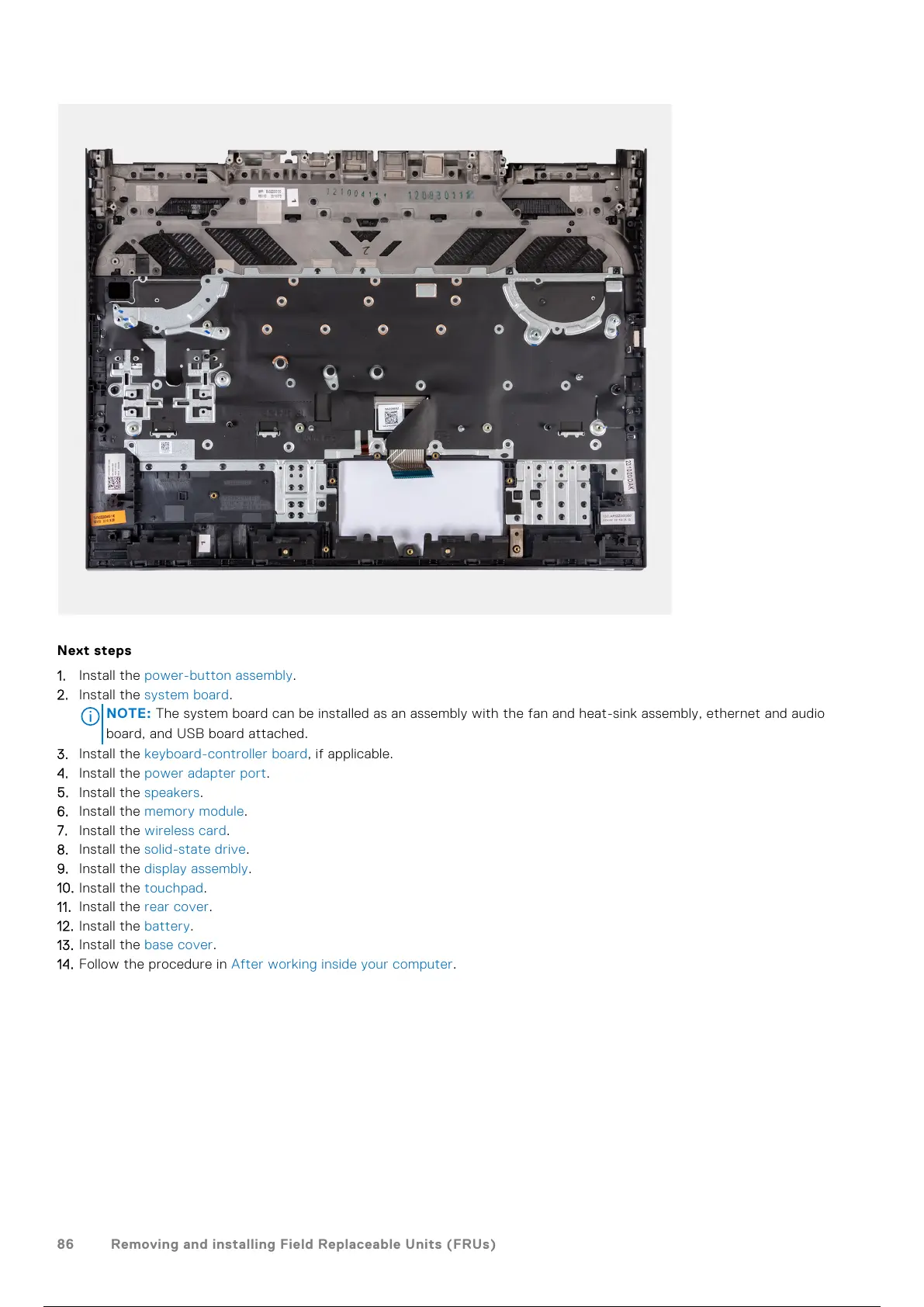

Next steps
1. Install the power-button assembly.
2. Install the system board.
NOTE:
The system board can be installed as an assembly with the fan and heat-sink assembly, ethernet and audio
board, and USB board attached.
3. Install the keyboard-controller board, if applicable.
4. Install the power adapter port.
5. Install the speakers.
6. Install the memory module.
7. Install the wireless card.
8. Install the solid-state drive.
9. Install the display assembly.
10. Install the touchpad.
11. Install the rear cover.
12. Install the battery.
13. Install the base cover.
14. Follow the procedure in After working inside your computer.
86
Removing and installing Field Replaceable Units (FRUs)
