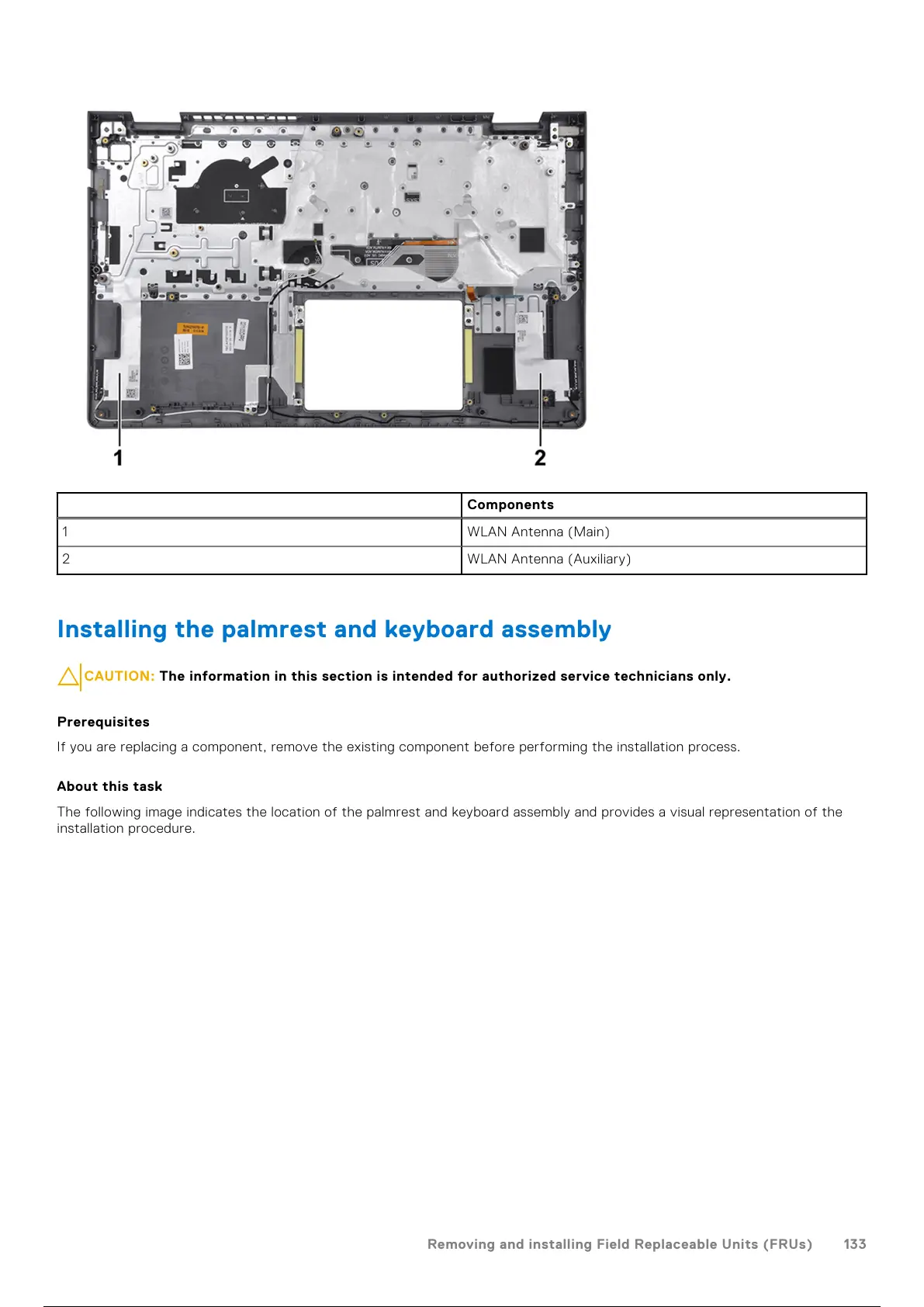

Components
1 WLAN Antenna (Main)
2 WLAN Antenna (Auxiliary)
Installing the palmrest and keyboard assembly
CAUTION: The information in this section is intended for authorized service technicians only.
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task
The following image indicates the location of the palmrest and keyboard assembly and provides a visual representation of the
installation procedure.
Removing and installing Field Replaceable Units (FRUs)
133
