Steps
1. Disconnect the fan cable from the system board.
2. Remove the two (M2x5) screws that secure the fan to the palm-rest and keyboard assembly.
3. Lift the fan from the palm-rest and keyboard assembly.
Installing the fan
Prerequisites
If you are replacing a component, remove the existing component before performing the installation process.
About this task

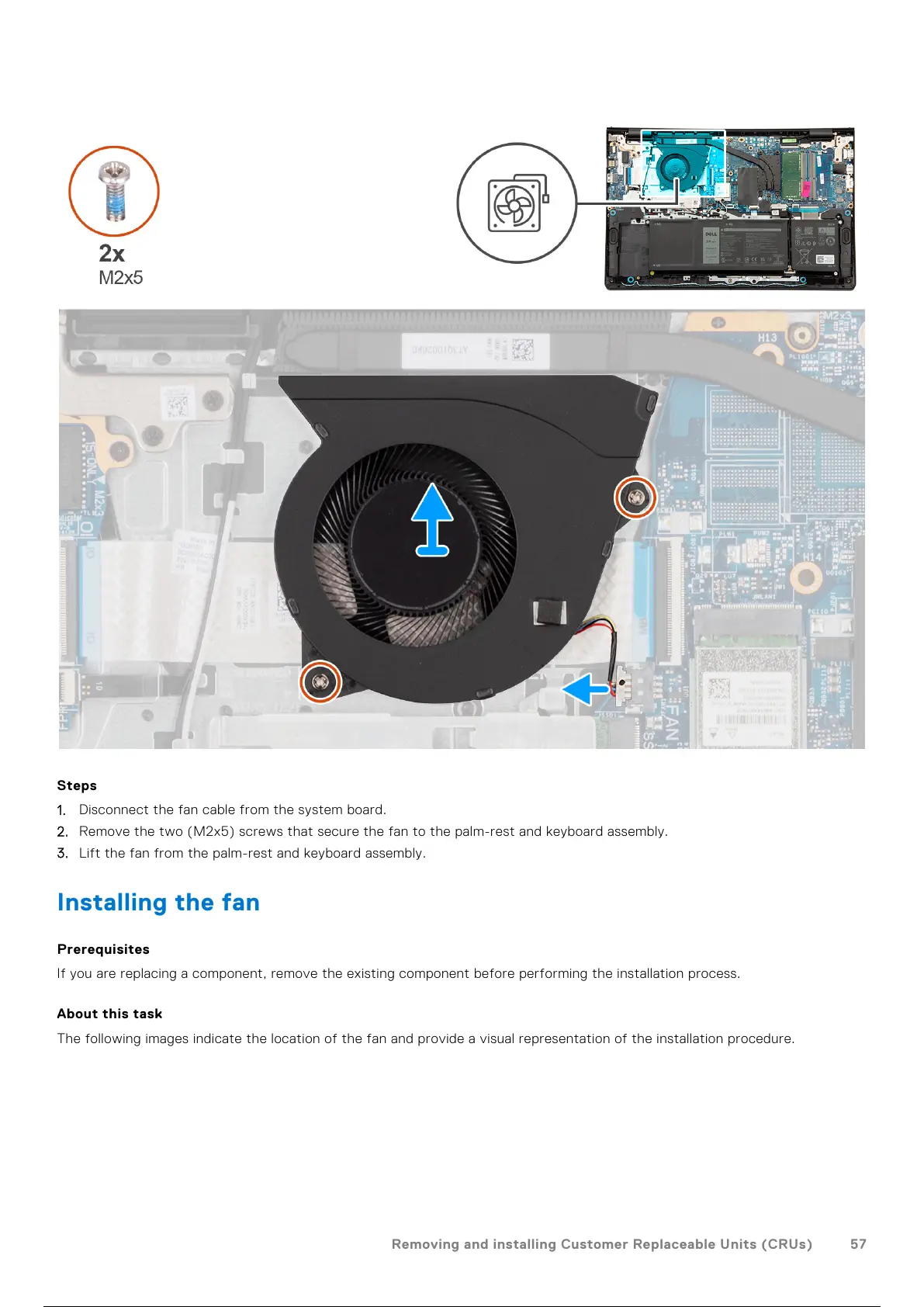

The following images indicate the location of the fan and provide a visual representation of the installation procedure.

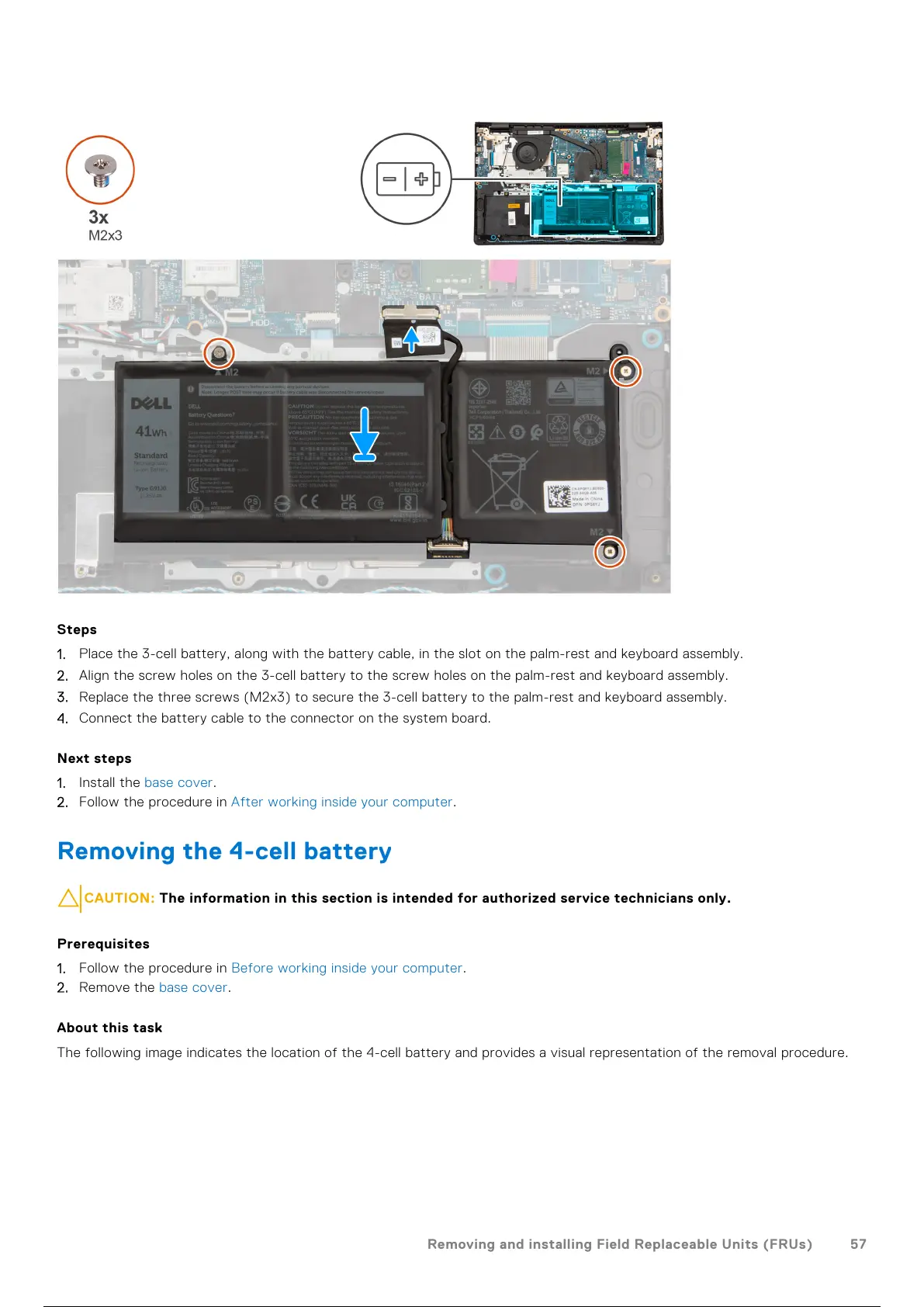

Removing and installing Customer Replaceable Units (CRUs)
57
58 / 156 57 / 154 58 / 156
To Next Page
