4. Ensure that the jumper setting on the new drive is set for "cable select" (see the documentation that came with the drive for information).
5. Remove the two extra alignment screws from the front of the computer and insert them into the drive.




6. Gently slide the drive into place.


7. Once the drive is in place, gently apply pressure to ensure that the drive is fully seated.
8. Use the securing screw that came with the drive to attach the drive to the computer.
1

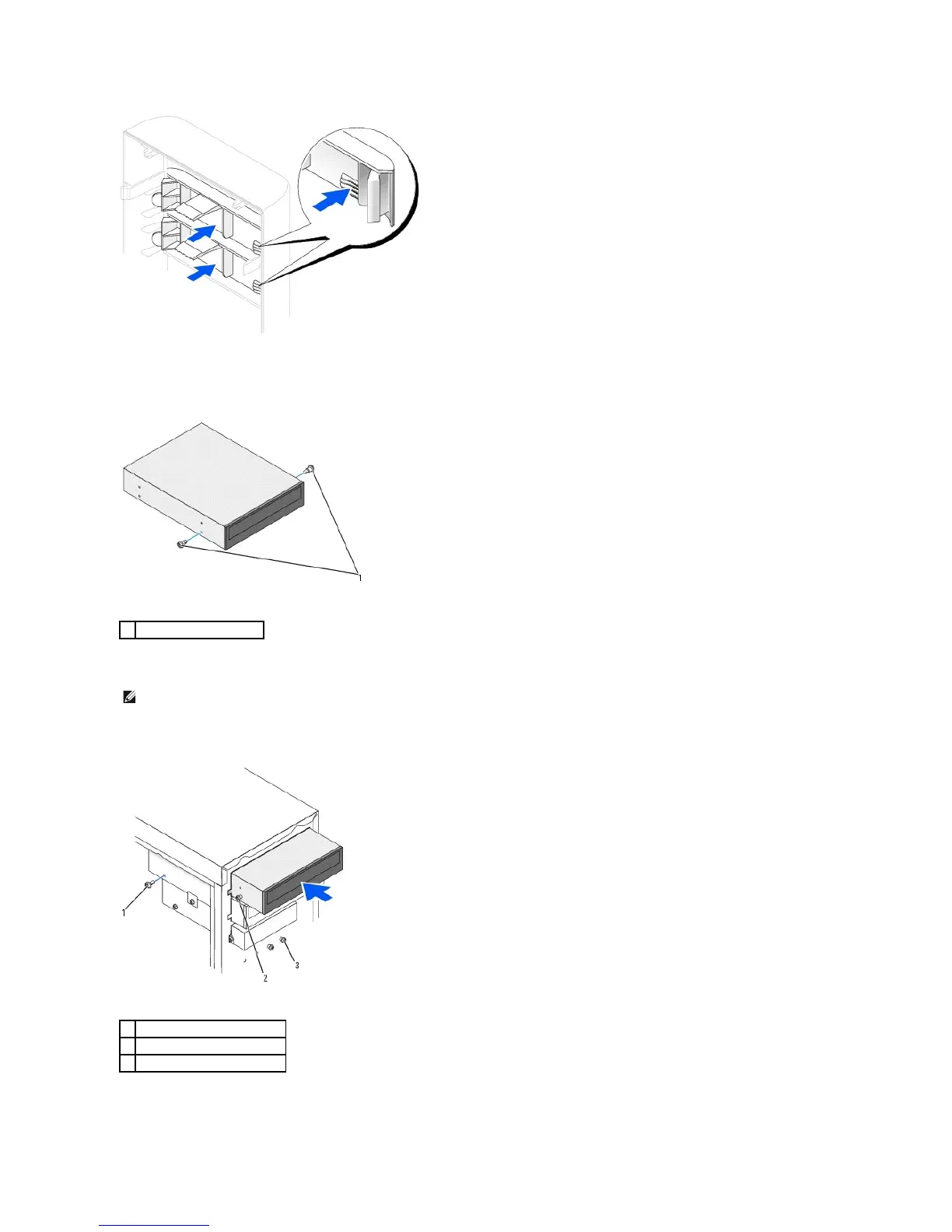

drive alignment screws (2)
NOTE: Some computers come with only two extra alignment screws; others come with four. You only need two alignment screws for this procedure.
1
securing screw
2
drive alignment screws (2)
3
extra alignment screws (2 or 4)
