Dell OptiPlex 3000 Tower - Page 41

About this task

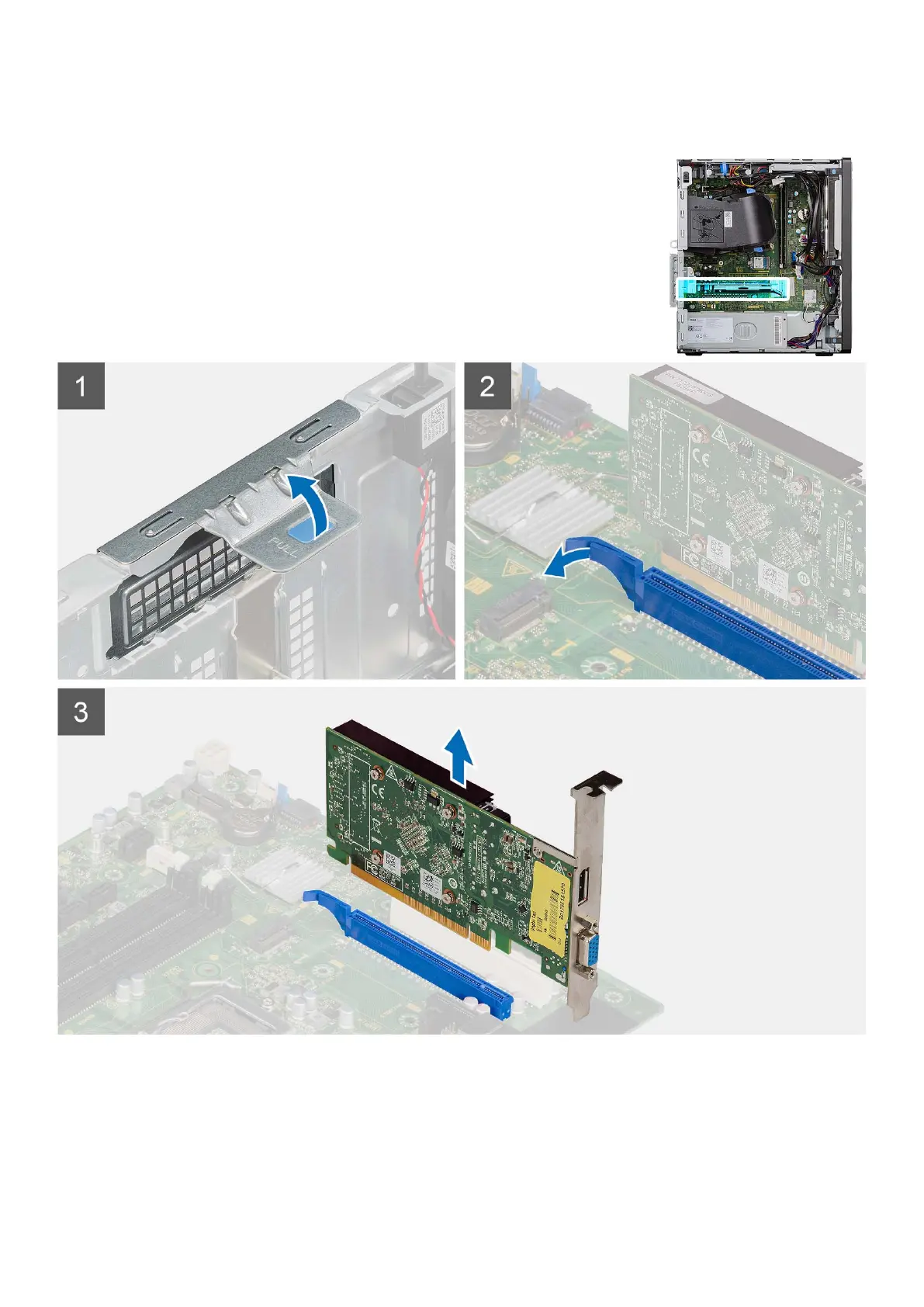

The following images indicate the location of the graphics card and provide a visual representation of the removal procedure.
Steps
1. Lift the pull tab to open the PCIe door.
2. Push and hold the securing tab on the graphics-card slot and lift the graphics card from the graphics-card slot.
Removing and installing components
41
