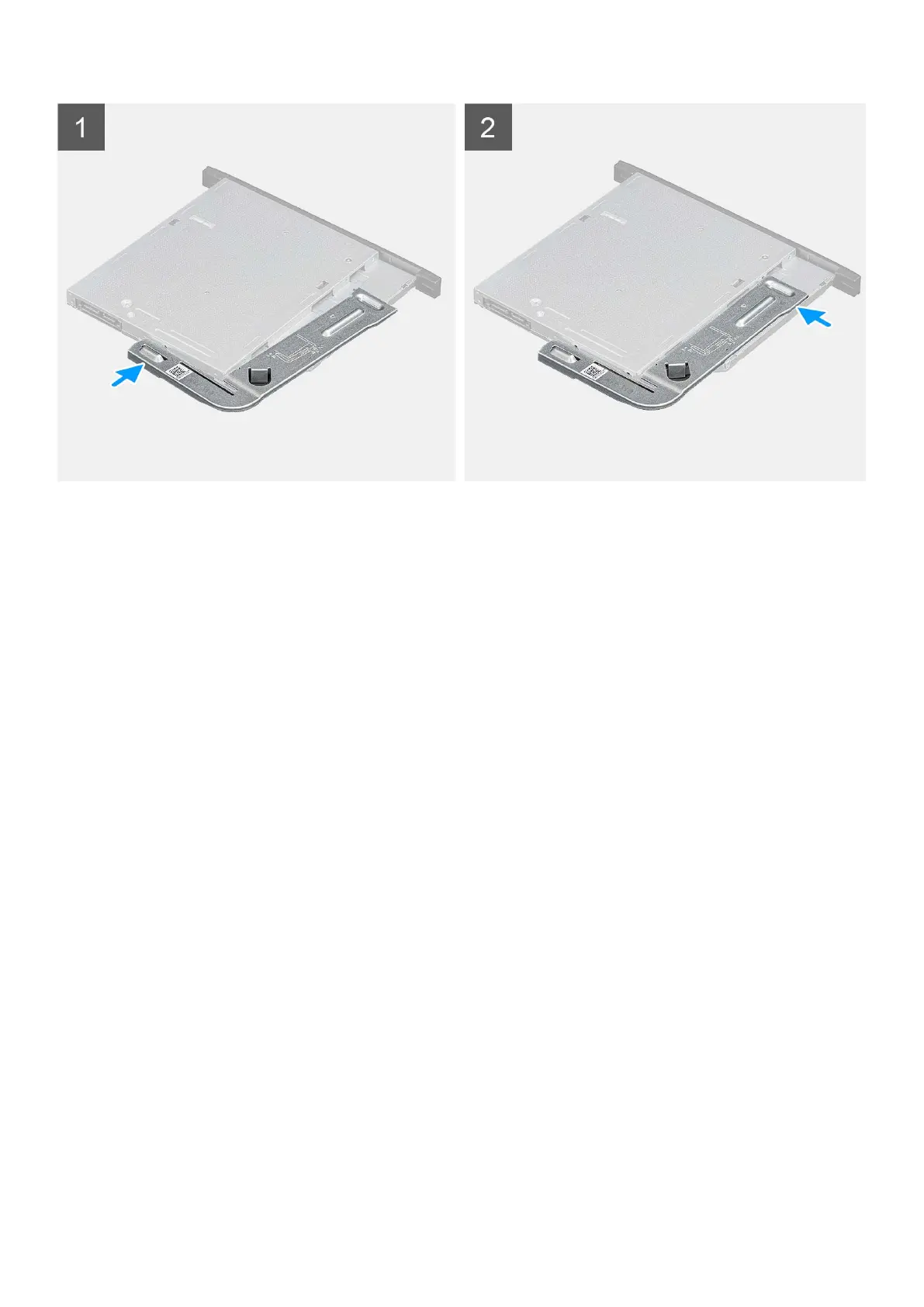

Steps
1. Align and place the slim-ODD bracket on the ODD slots.
2. Snap the slim-ODD bracket into the slim ODD.
Next steps
1. Install the slim Optical Disk Drive.
2. Install the side cover.
3. Follow the procedure in after working inside your computer.
Speaker
Removing the speaker
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the side cover.
About this task
The following images indicate the location of the speaker and provide a visual representation of the removal procedure.
50
Removing and installing components
