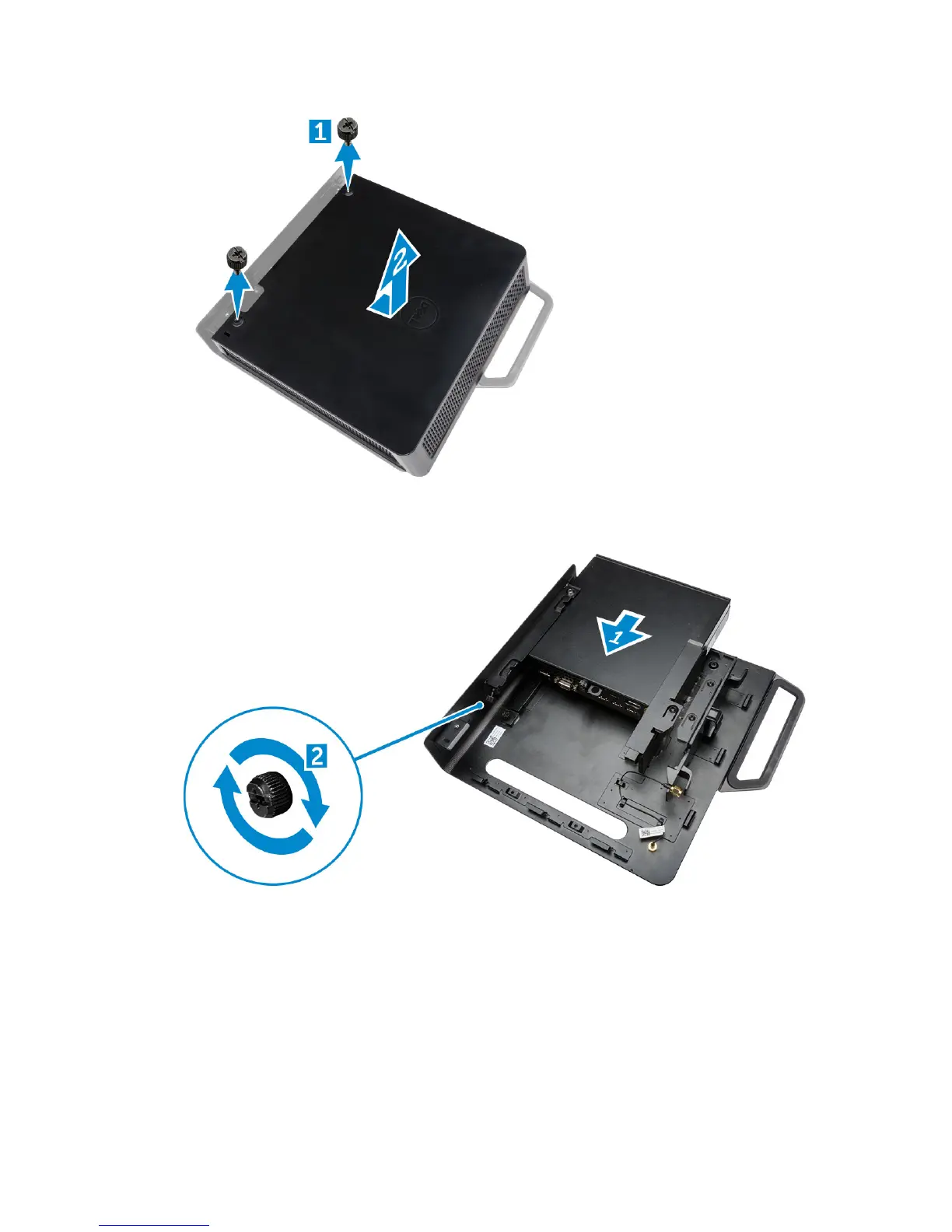

2. Perform the following steps as shown in the illustration:
a. Slide the computer into the slot [1].
b. Rotate the screw in clockwise direction to secure the computer to the chassis [2].
3. Perform the following steps as shown in the illustration:
a. Lift up the antenna cable [1].
b. Connect the antenna cable to the antenna connector on the computer [2].
19
