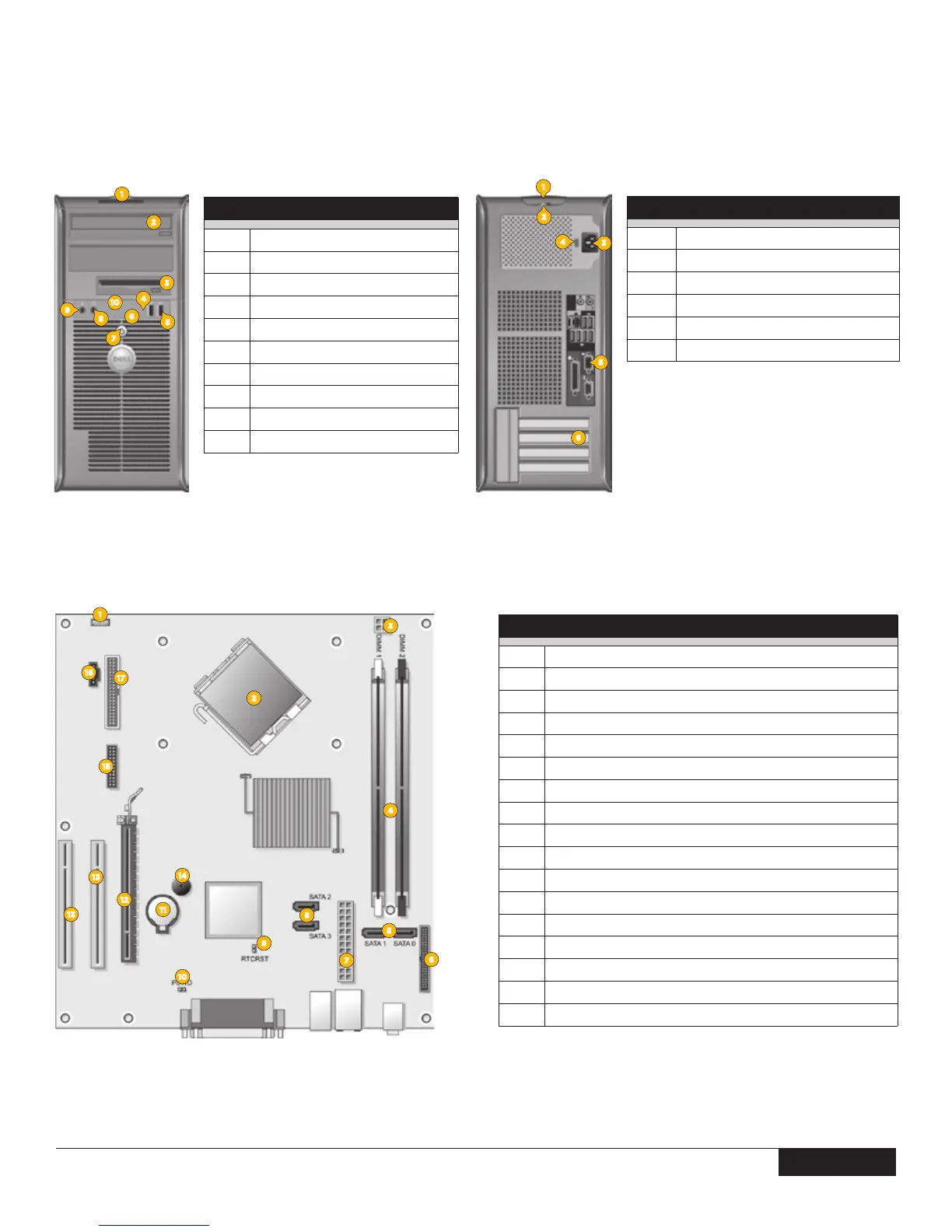

Dell OptiPlex 330 - Mini Tower Computer (MT) View

VERSION 1.0 5
DELL™ OPTIPLEX™ 330 TECHNICAL GUIDE
55
Mini towEr coMputEr (Mt) viEw
SYSTEM BOARD COMPONENTS
1
speaker connector (INT_SPKR)
2
processor connector (CPU)
3
processor power connector (12VPOWER)
4
memory module connectors (DIMM_1, DIMM_2)
5
SATA drive connectors (SATA0, SATA1)
6
front-panel connector (FRONTPANEL)
7
power connector (POWER)
8
SATA drive connectors (SATA2, SATA3)
9
RTC reset jumper (RTCRST)
10
password jumper (PSWD)
11
battery socket (BATTERY)
12
PCI Express x16 card connector (SLOT1)
13
PCI card connectors (SLOT2 and SLOT3)
14
internal buzzer (SPKR)
15
serial/PS/2 connector (PS2/SER2)
16
fan connector (FAN_CPU)
17
oppy drive connector (FLOPPY)
FRONT VIEW
1
service tag
2
optical drive
3
floppy drive
4
drive activity light
5
USB 2.0 connectors (2)
6
diagnostic lights
7
power button
8
headphone connector
9
microphone connector
10
LAN indicator light
BACK VIEW
1
cover-release latch
2
padlock ring
3
power connector
4
voltage selector switch
5
back panel connectors
6
card slots
1
2
3
4
9
5
7
8
10
6
6
1
2
4
3
5
12
13
14
15
11
10
1
2
3
4
5
7
6
8
9
13
16
17
