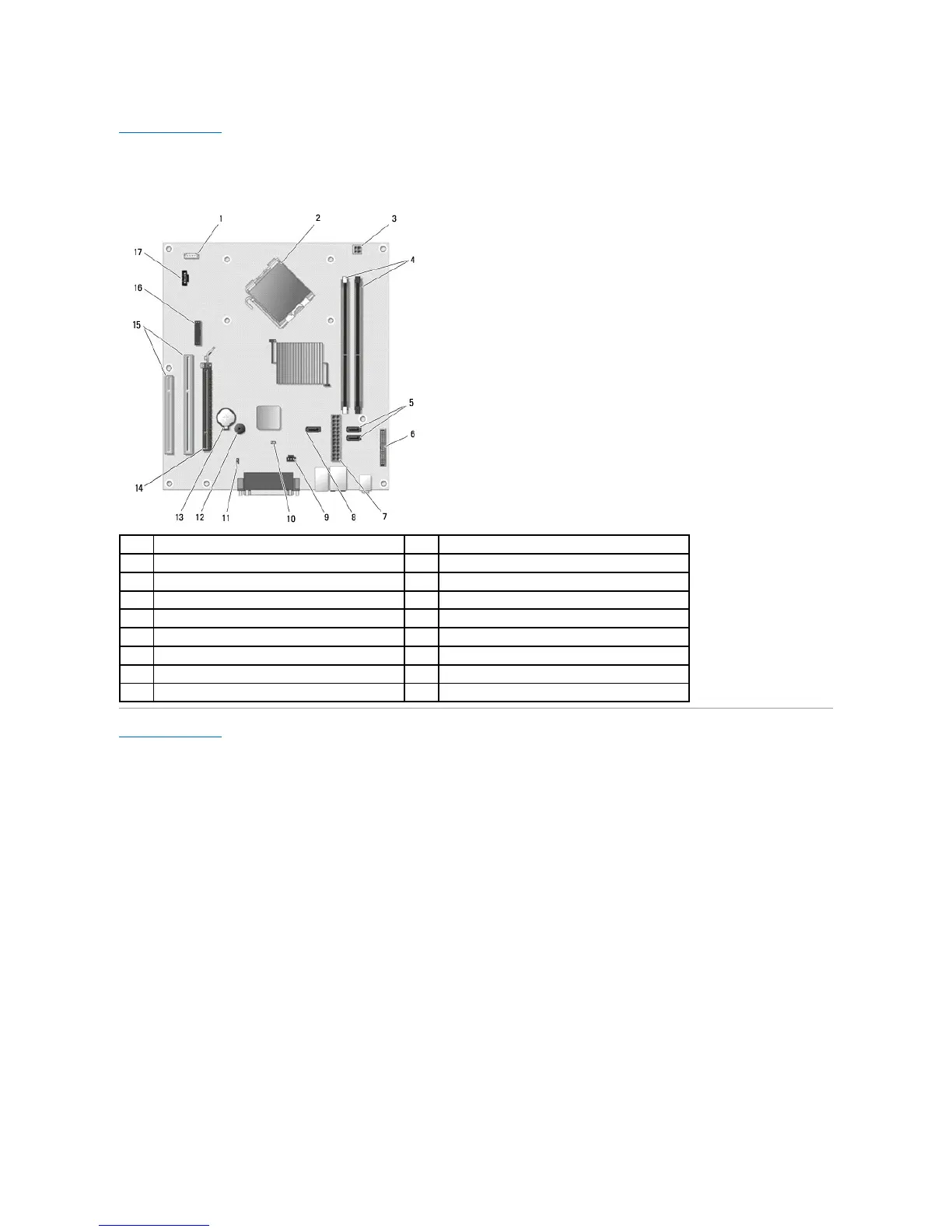

System Board Layout
Dell™OptiPlex™380ServiceManual—Desktop
Back to Contents Page
1
speaker connector (INT_SPKR)
2
processor connector (CPU)
3
processor power connector (12V POWER)
4
memory module connectors (DIMM_1 and DIMM_2)
5
SATA drive connectors (SATA0 and SATA1)
6
front-panel connector (FRONTPANEL)
7
power connector (POWER)
8
SATA drive connector (SATA2)
9
intruder connector (INTRUDER)
10
reset jumper (RTCRST)
11
password jumper (PSWD)
12
internal speaker (SPKR)
13
coin-cell battery socket (BATTERY)
14
PCI Express x16 connector (SLOT1)
15
PCI connectors (SLOT2 and SLOT3)
16
serial/ PS/2 connector (PS2/SER2)
17
fan connector (FAN_CPU)


