Dell OptiPlex 5050 - Removing the 2.5-Inch Drive from the Bracket

Removing the 2.5-inch drive from the bracket
1 Follow the procedure in Before Working Inside Your Computer.
2 Remove the:
a cover
b 2.5-inch drive assembly
3 To remove the drive:

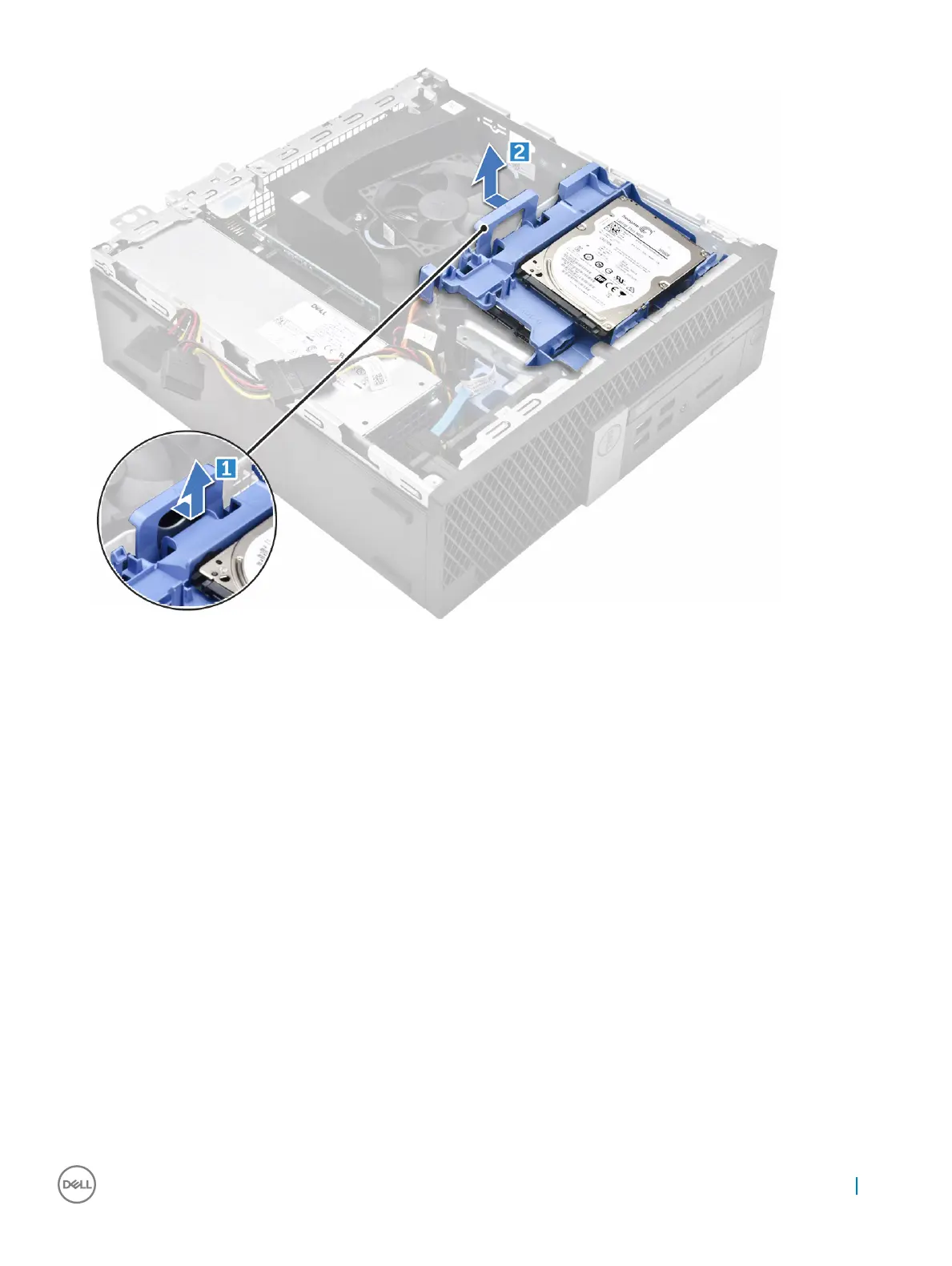

a Pull one side of the drive bracket to disengage the pins on the bracket from the slots on the drive [1].
b Lift the drive out of the 2.5-inch drive bracket [2].
