Dell OptiPlex 7010 - O V E R V I E W; Mini Tower Computer (MT) View

DELL™ OPTIPLEX™ 7010 TECHNICAL GUIDEBOOK VER1.0
3
MI NI T OWER COMPUTER (MT) VIEW

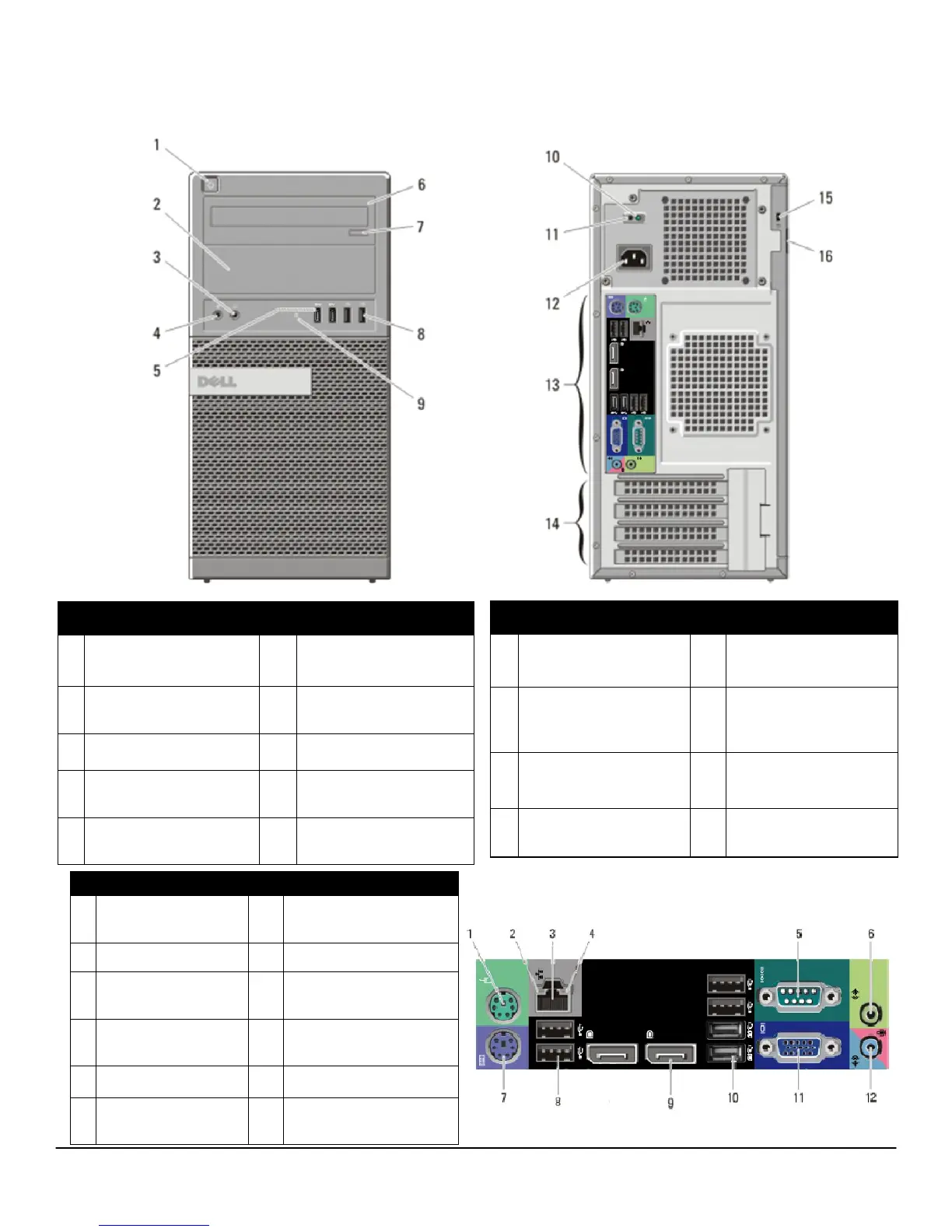

FRONT VIEW
1 Power Button, Power
Light
6 Optical Drive (optional)
2 Optical Drive Bay
(optional)
7 Optical Drive Eject
Button
3 Headphone Connector 8 USB 2.0 Connectors (2)
4 Microphone
Connector
9 Drive Activity Light
5 USB 3.0 Connectors
(2)
BACK VIEW
10 Power Supply Diag-
nostic Light
14 Expansion Card Slots
(4)
11 Power Supply Diag-
nostic Button
15 Kensington / Noble
Security Cable Slot
12 Power Connectors 16 Padlock Ring
13 Back Panel Connect-
ors
BACK PANEL CONNECTORS
1
PS2 Mouse Con-
nector
7
SP2 Keyboard Con-
nector
2 Link Integrity Light 8 USB2.0 Connectors (2)
3 Network Connector 9
DisplayPort Connector
(2)
4
Network Activity
Light
10
USB2.0 Connectors (2)
USB3.0 Connectors (2)
5 Serial Connector 11 VGA Connector
6 Line-out Connector 12
Line-in/Microphone
Connector
