DELL™ OPTIPLEX™ 7010 TECHNICAL GUIDEBOOK VER1.0
7

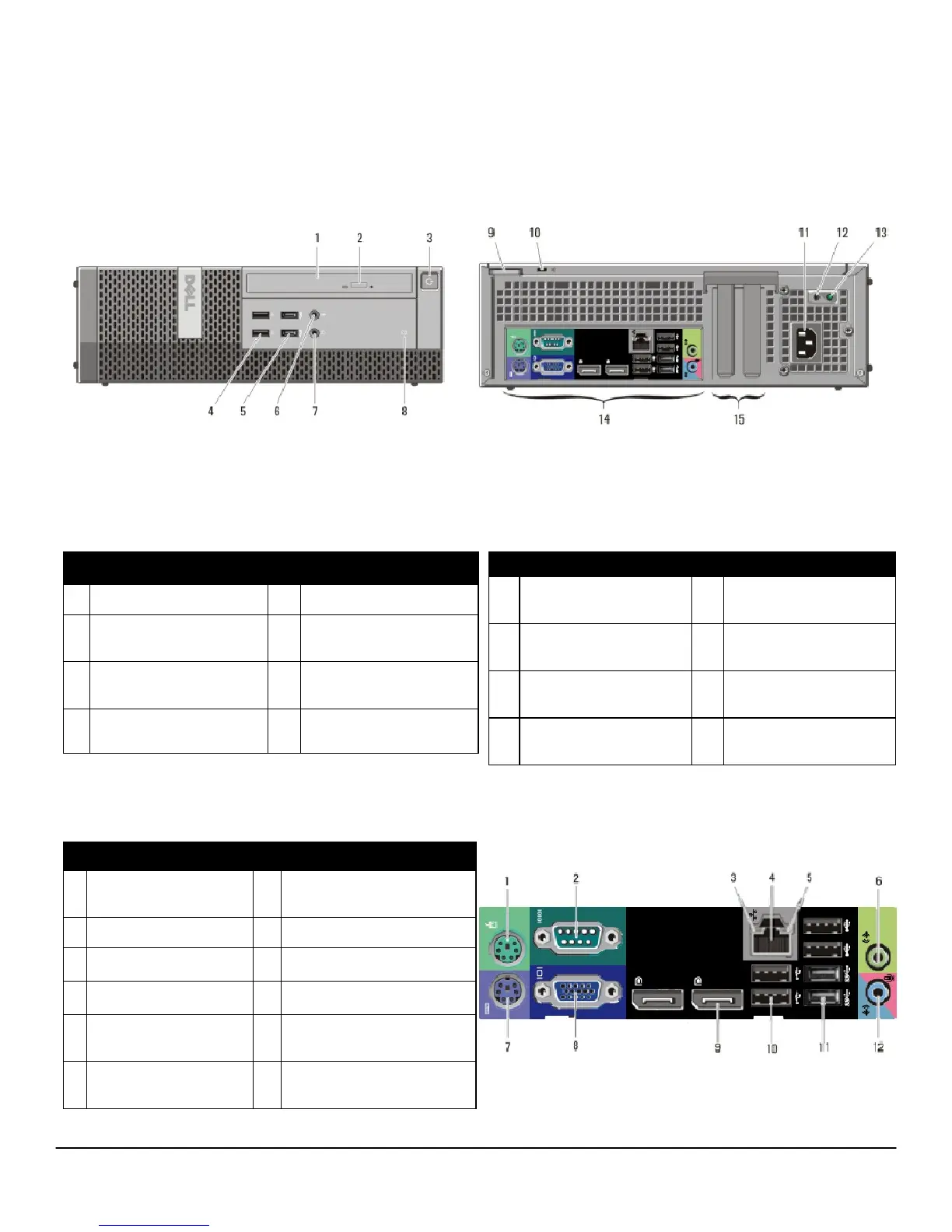

SMALL FORM F ACTOR COMPUTER (SFF) VIEW
FRONT VIEW
1 Optical Drive 5 USB 3.0 Connectors (2)
2 Optical Drive Eject
Button
6 Microphone Connector
3 Power Button, Power
Light
7 Headphone Connector
4 USB 2.0 Connectors (2) 8 Drive Activity Light
BACK VIEW
9 Padlock Ring 13 Power Supply
Diagnostic Light
10 Kensington / Noble
Security Cable Slot
14 Back Panel
Connectors
11 Power Connectors 15 Expansion Card Slots
(2)
12 Power Supply
Diagnostic Button
BACK PANEL CONNECTORS
1 PS2 Mouse
Connector
7 PS2 Keyboard Connector
2 Serial Connector 8 VGA Connector
3 Link Integrity Light 9 DisplayPort Connector(2)
4 Network Connector 10 USB 2.0 Connectors (2)
5 Network Activity Light
11
USB2.0 Connectors (2)
USB3.0 Connectors (2)
6 Line-out Connector 12 Line-in/Microphone Con-
nector
