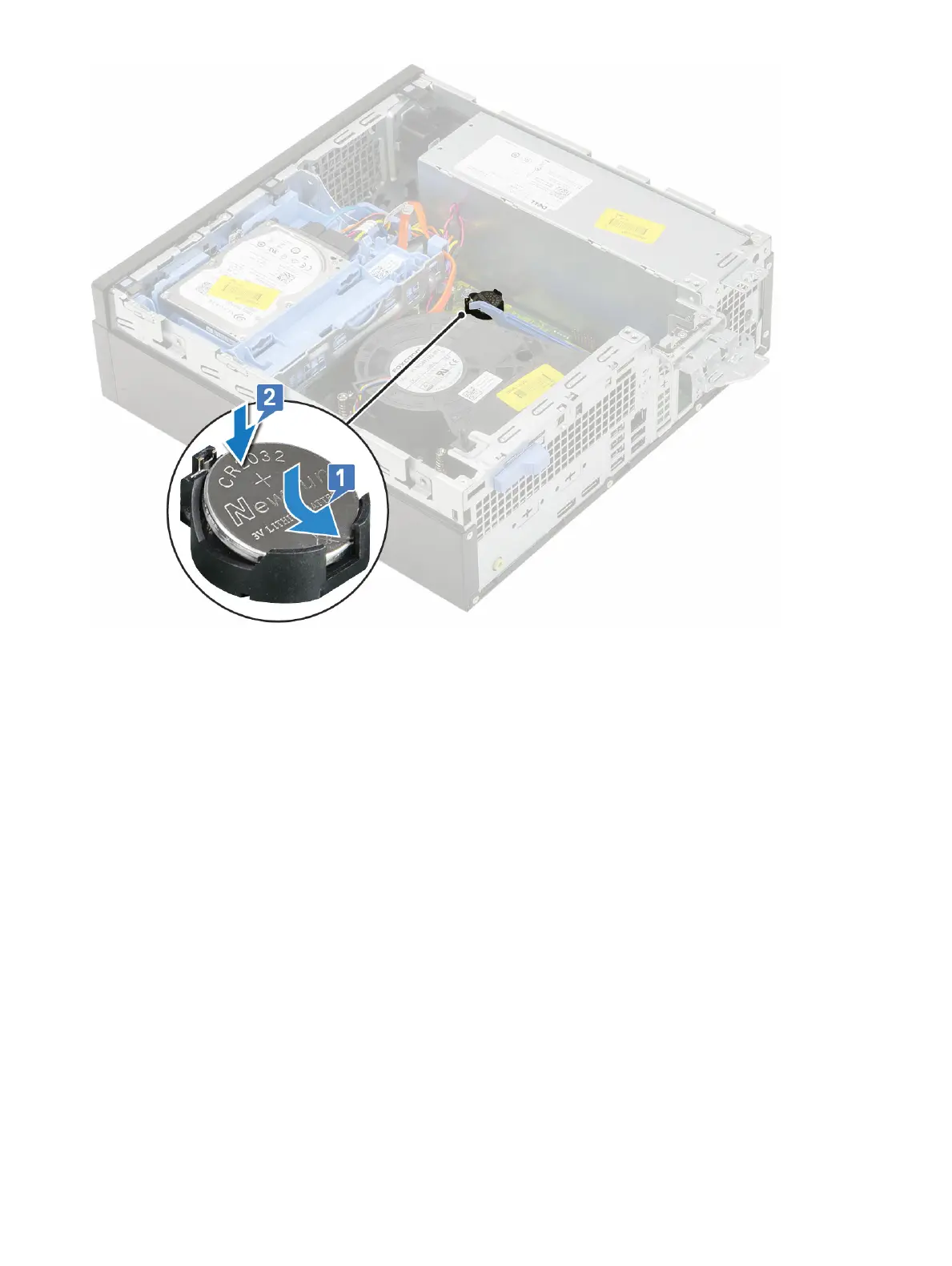

3 Install the Side cover.
4 Follow the procedure in After working inside your computer.
Hard drive assembly
Depending on the conguration you choose, you will have either one 3.5–inch hard drive assembly or two 2.5–inch hard drive assembly.
Removing the hard drive assembly
1 Follow the procedure in Before working inside your computer.
2 Remove the Side cover.
3 To remove the hard drive:
a Disconnect the hard drive data cable and power cable from the connectors on the hard drive [1, 2].
b Push the release tab and lift the hard drive assembly from the system [3].
16
Disassembly and reassembly
