14 About Your Computer

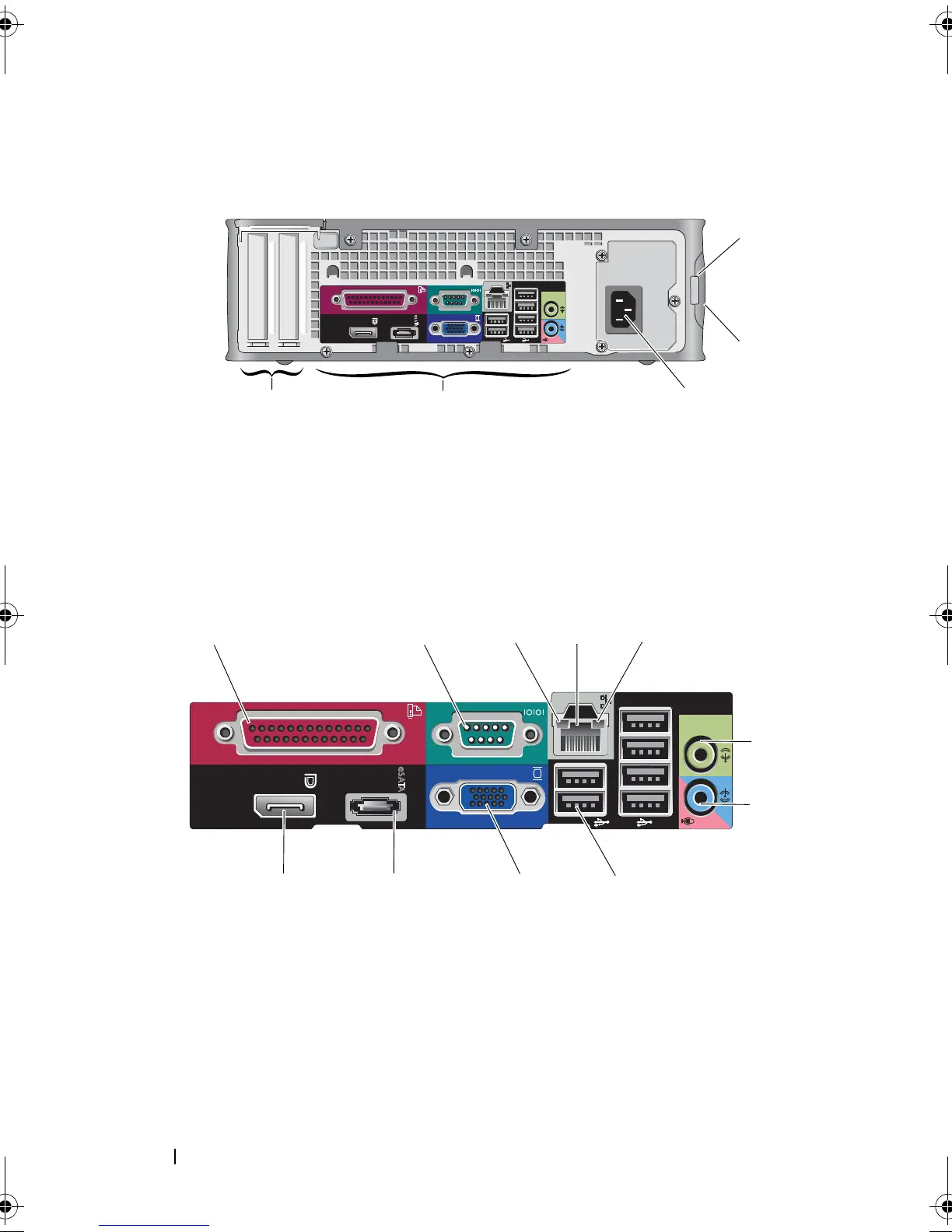

Small Form Factor — Back View
Small Form Factor — Back Panel Connectors
1 padlock rings 2 cover release latch
3 power connector 4 back-panel connectors
5 expansion-card slots (2)
1 parallel connector 2 serial connector
3 link-integrity light 4 network connector
5 network-activity light 6 line-out connector
7 line-in connector 8 USB 2.0 connectors (6)
9 VGA video connector 10 eSATA connector
11 DisplayPort connector
5
2
1
3
4
1
2
8
7
3
4
5
6
10
11 9
