Inside Your Computer
Dell™ OptiPlex™ GX260 Service Manual
Key Components
Computer Cables
Key Components
NOTE: User service access points are color-coded green.
Small Form-Factor Computer

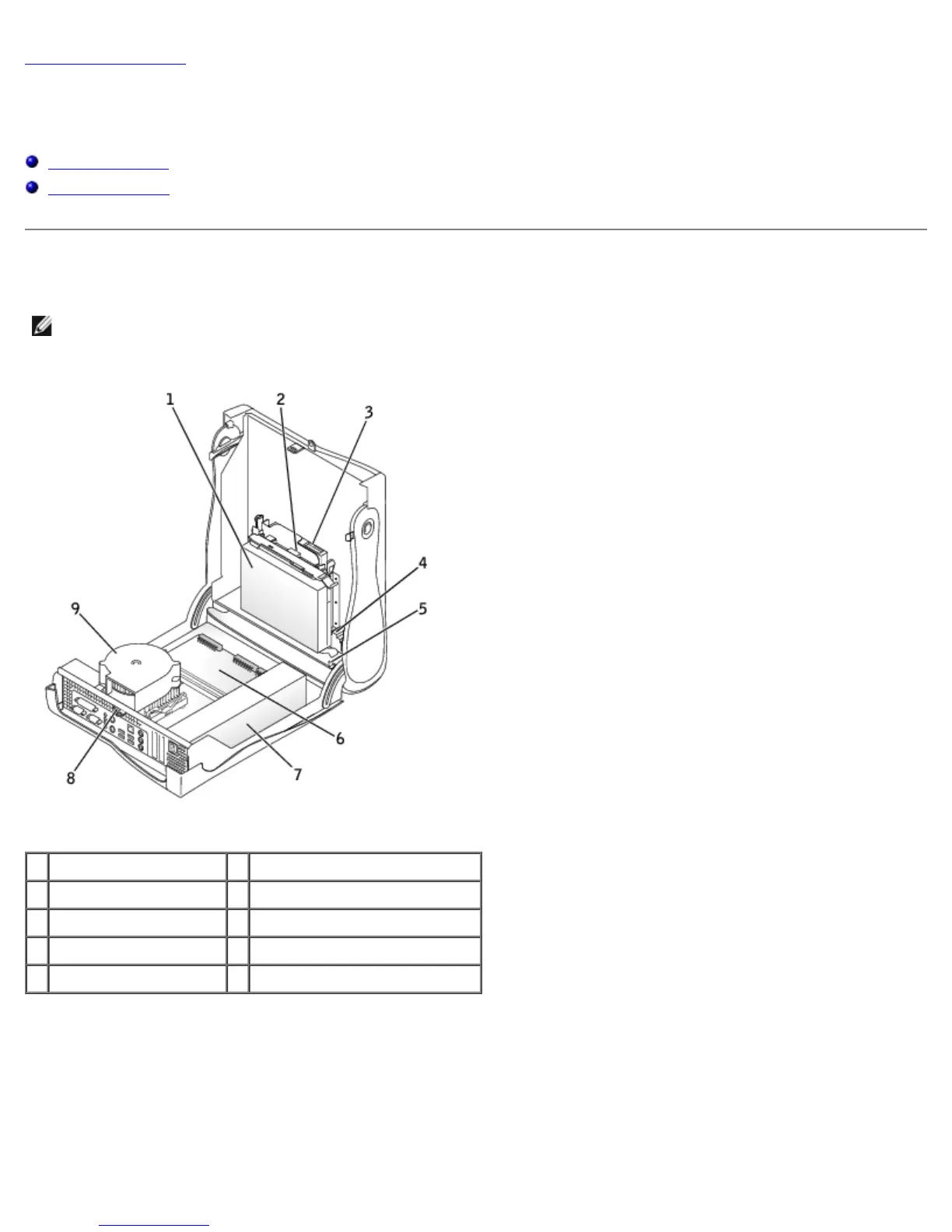

1 hard drive 6 system board
2 floppy drive 7 power supply
3 CD/DVD drive 8 padlock ring
4 internal speaker 9 heat sink and blower assembly
5 chassis intrusion switch
Small Desktop Computer
